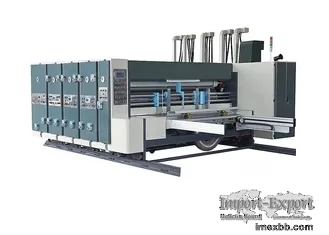

200 Sheets/Min Corrugated Box Printing Machine Carton Box Making Machine

Lead edge feeding part:

1. Lead edge feeding system , easy operation and accurate

2. 7.5kw high pressure centrifugal ,frequency converter control blower pressure
to ensure feeding warp cardboard exactly

3. Position of Right and left side apron is adjusted by electric with screw
drive

4. Front apron lower and upper gap is sync adjustment

5. Skip feeding device , you can choose this as your request to ensure large
size cardboard can be processed

6. Install 7.5 inch touch screen and can show productivity number and speed and
also to set speed

7. Slotting die-cutting part with chain control switch and it can realize stop
or start feeding



Function and configuration



No
Item
Function and configuration



1



Crease wheel
Using high quality steel, with grinding process and plating hard chromium.
Pressure roller surface be grinded and hard chromium plating ,do balance
processing
Equipped special design wheel is keep from crack.
Equipped manual gap adjustment device that fast and self-locking, dial
indicates to show set direction and set amount.




2




Slot knife adjustment on axial direction
Seamless steel pipe is selected and run smoothly after grinding and balancing.
Slotted knife width 7mm, alloy material, after heat treatment grinding, tooth
shape slotted knife, sharp edge, high precision.
The slotting knife box height adjustment adopts four knife synchronous
adjustment, and the slotting blade adopts four knife
manual synchronous transverse movement.
Hand-tuned fast clearance fine-tuning self-locking device with dial display
adjustment direction and value
3
Slotting phase adjustment
Structure of planetary gear type
Slotting phase adopt 360 degree electric synchronous adjustment.
4
Punching device(option)
Option, clients are beard the cost


Printing part:

1. Phase 360°electrical adjustment (planetary gear )

2. Roller axial position is adjusted electrically and manually , left and right
movement 10mm

3. Excellent metal anilox roller made by professional manufacturer

4. Rubber roller made by professional manufacturer and ensure ink quality

5. Supply ink cycling pneumatically

6. You can choose ceramic roller

7. Whole roller with hang lath which is standard

8.Ceramic roller and doctor blade
