200-600vdc input rack mount off grid inverter

200-600vdc input rack mount off grid inverter


Technical Features/Our Advantages

With low frequency transformer, 100% full power output, can work 24hx7.
High efficiency > 94%, low loss and long service life > 15 years.
Mitsubishi IPM intelligent modular structure design, easy and low cost for
future's maintenance, powerful protection for over load, short circuit, over
temperature which is more safe and reliable.
The DC input voltge range, output voltage, output frequency can be set.
Two kinds of start mode: variable frequency start or step down voltage
start, higher capacity to drive inductive load.
AC bypass input(DC power priority or AC bypass power priority can be set)
and RS485 monitoring optional.
Wide voltage input range can be selected from 100-400VDC or 200-600VDC or
400-800VDC, off grid inverter can work without battery.
Powerful data display function. LCD can display the DC input voltage, output
frequency, phase voltage, phase current, AC bypass input voltage, output
power KWH, time and date, temperature, fault code display.
Approved by European CE (EMC, LVD, UL1741, CSA22.2) certificate.


Optional Function

RS485 remote monitoring
Can add AC bypass input complementary function
Can built in solar charge controller or AC-DC charger


Product Specifications

DC Input

DC input: 48/96/120/144/192/240/300/360/480/540/600Vdc
AC Bypass Input: Optional

AC Output

Rated output power: 10kw
Pure sine wave
AC output voltage: 110/120/220/230/240/380/400/415/440/480VAC (optional)
Output phase: Single phase or Split phase or Three phase
Frequency: 50hz or 60hz
Power Factor: >0.95
Inverter efficiency: >94%
LCD Display
Voltage accuracy: Load balancing<1%, Unbalance <5%
THD: linear load, 2%, nonlinear load >3%
No load amps: 2% of inverter size depending on DC voltage (1000 watts / DC
input voltage = amps)
Protections

Overload 150% for 5 seconds, 120% for 35 seconds
Input reverse polarity
Under voltage
Over voltage
Output over current
Short circuit
Over temperature
Fan cooled, Always on
Short circuit: no automatic recovery. Restart required
<50dB
Operating temperature: -25 to 55 Celsius
Humidity: 90% non-condensing
Dimensions: Rack Mount Cabinet 482mm(Width) x 680mm(Depth) x 300mm(Height)
or Stand Cabinet 550mm(Width) x 550mm(Depth) x 860mm(Height)
Weight: 120kg

Minimum Order: 1 pieces

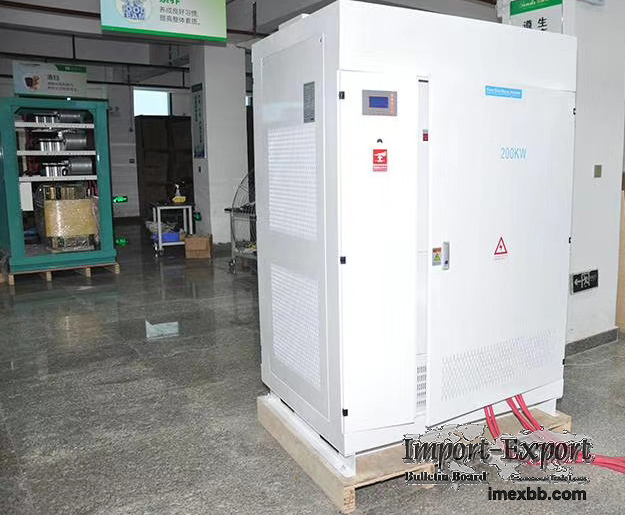

Click to Enlarge
