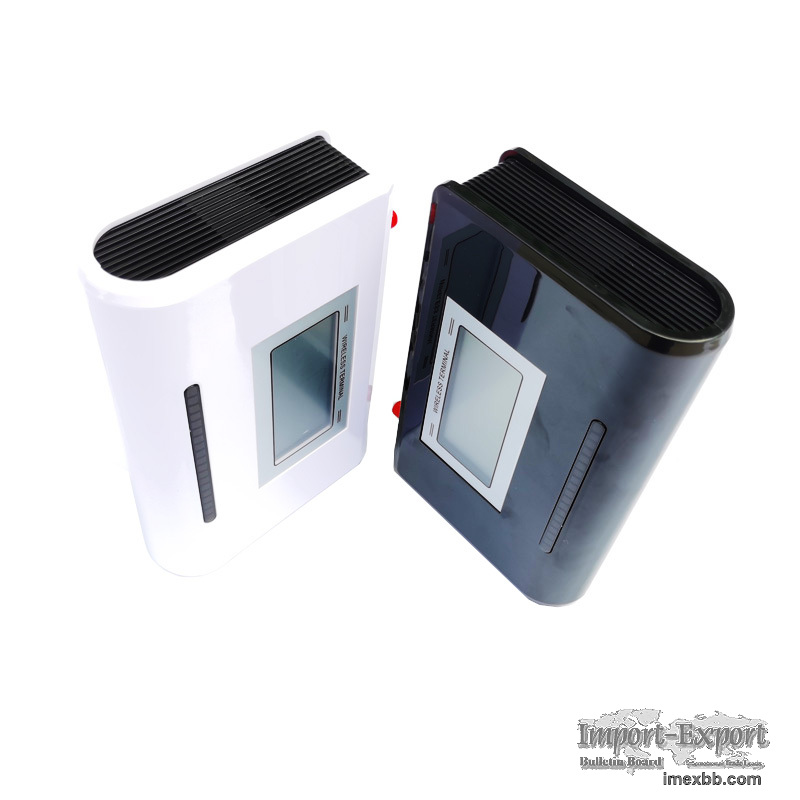

2 RJ-11 ports polarity reverse volte fixed wireless terminal

Description 2 RJ-11 ports polarity reverse volte fixed wireless terminal
Item no. A380LCD-4G
Module Quectel EC200A-AU
Polarity reverse Support
RJ11 port 2
Feature refinements supports DFOTA*, eCall* and DTMF
Speech Codec HR/FR/EFR/AMR/AMR-WB
Echo Arithmetic Echo Cancellation/Noise Suppression
VoLTE Digital Audio and VoLTE
Interfaces UART × 2 : Main UART and Debug UART
USB 2.0 with High Speed up to 480Mbps
1.8V/3.0V (U)SIM Interface
Digital Audio through PCM Interface
ADC × 2
SDIO × 2 (for Wi-Fi and SD card)
UART/PCM Interfaces for BT4.0 Function
Audio Playback/Audio Recording
USB Serial Driver Windows 7/8/8.1/10 or Windows CE 5.0/6.0/7.0*
Linux 2.6/3.x/4.1~4.14
RIL Driver Android 4.x/5.x/6.x/7.x/8.x
NDIS Driver Windows 7/8/8.1/10
ECM Driver* Linux 2.6/3.x/4.1~4.14
Gobinet Driver Linux 2.6/3.x/4.1~4.14
Linux qmi wwan Driver 3.x (3.4 or later)/4.1~4.14
Consumption Power off: 20uA
Sleep Typ: 3mA
Idle: 22mA
Display STN Black& White
Resolution 128*64 pixels
Adapter EU, UK, USA, AU adapter etc. optional
SIM connection 1.8V or 3.0V
Power Supply Input 100-220V
Output 12V 1A or 5V 1A
Battery 600mAh, 800mAh, 1000mAh, 2000mAh
SIM card 2FF; Single or dual sim card optional;
Color Black or white or OEM;
LCD Size: 67*30mm
Antenna 3m antenna or small rubber antenna
Caller ID DTMF or FSK or both
Frequency LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
LTE TDD: B40
WCDMA: B1/B2/B4/B5/B8
GSM: B2/B3/B5/B8
Dimension Device: 160*100*30mm
Pack Box: 180*120*77mm
Package Device*1；
Adaptor*1；
Battery(built in)*1；
Straight Cable*1；
User manual*1；
Antenna*1pc；
Weight 0.45kg

Minimum Order: 1 pieces
