2 Pin Waterproof Circular Connectors , 50A 500V Circular Cable Connectors

2Pin 50A 500V Waterproof Circular Connectors , M25 Male Plug Female Cable
Connectors Uk

Description:


2pin wire to board waterproof connector
circular outdoor power cable connectors
waterproof cable connector ip67
2pin DC power plug socket
industrial Electrical Plug socket
TUV,UL,CUL,CE approval
Any quantity is welcome
Panl mount connectors: for PCB, for screw fitting or soldering


Operation Parameters
Voltage Rating 600VAC max
Current Rating 50A max
Min Wire Size OD 6.5mm ~ 10mm
Max Wire Size OD 10.5mm ~ 18mm
Max.Cable Cross Section Area 0.5mm2 ~ 6.0mm2


M25 waterproof Circular connector is the perfect solution to make your own
waterproof connection cables easily. Thanks to its screw based terminal,
soldering is not required and installation just takes a few minutes.



Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone

Once assembled, the M25 Outdoor Waterproof Circular Conector is easy to plug
and play while keeping the elements and water out of splices and junctions.
To disconnect, just unscrew the main body and pull apart the two ends.The
M25 Waterproof conector has multiple waterproofing levels, consisting of o-
rings, waterproof sealant, and flexible end seals designed to tighten and
close awhen screwed together.

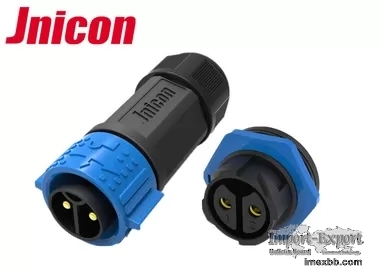

2 Pin Waterproof Circular Connectors , 50A 500V Circular Cable Connectors 0



This M25 circular power connector has a waterproof rating of IP67. To
assemble the M25 Outdoor Waterproof Connector,only a Philips Screwdriver is
required to attach the two wires inside each main body. Once each side is
connected, the wiring is fully protected from the elements.

If soldering version needed, its also avialble.
