2 Gangs Bluetooth Switch Module

This 2 gangs Bluetooth Switch Module connect to mobile app or smart speaker by
bluetooth signals. Bluetooth communication is an emerging short-distance, low-
cost, and high-speed wireless network technology with high communication
efficiency.

Different Types Of 2 Gangs Bluetooth Switch Module

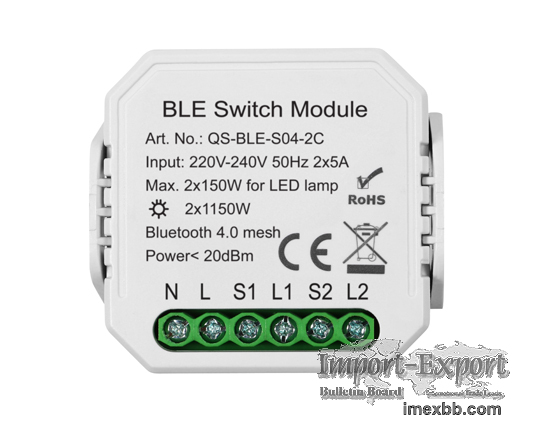

2 channel bluetooth relay module
QS-BLE-S04-2C
2 Gangs Smart Bluetooth Switch Module

Voltage 220-240V AC

Max. load: 2x5A, 2x1150W / 2x150W for LED lamp

Dims (WxDxH): 46x46x18mm
Parameters Of 2 Gangs Bluetooth Switch Module
Protocol Bluetooth 4.0 Wireless Mesh
Operation temp. -10ºC - +40ºC
Operation range ≤ 10 m
IP rating IP20
Certificates CE ROHS
Warranty 2 years

Features Of 2 Gangs Bluetooth Switch Module
Compatible with most Bluetooth 4.0 mesh gateway.
2 gangs to control more devices according to your needs.
With BLE Mesh Gateway, the distance between Phone and Device can be more than
10m.
With no BLE mesh gateway, the distance between Phone and Device is 10m.
Easy to install behind the existing switch, keep function of manual switches.
App control is synchronized with the manual switch.
Voice control compatible with Google home and Amazon Alex etc.
Schedule,group, scene, automation functions organizable with other smart home
devices,easily achieve home automation.
Accept customer customization for logo, color box. etc.
Quality Standard Of 2 Gangs Bluetooth Switch Module
Quality Standard Of
EN 300 328 V2.1.1 (2016-11),

EN 301489-1 V2.1.1 (2017-02),

EN 301489-17 V3.1.1 (2017-02),

EN 62311: 2008, EN 61000-6-1:2007,

EN 61000-6-3:2007+A1:2011

Safety Standard (LVD)
IEC 60669-2-1:2002 / AMD1:2008 / AMD2:2015,

IEC 60669-1:1998 / AMD1:1999 / AMD2:2006,

EN 60669-2-1: 2004+A1: 2009+ A2: 2010,

EN 60669-1:2018

Radio Equipment (RED)
ETSI EN 300 328 V2.1.1 (2016-11)

RoHS Standard (RoHS)
2011/65/EU, (EU) 2015/ 863.

Minimum Order: 2000 pieces
