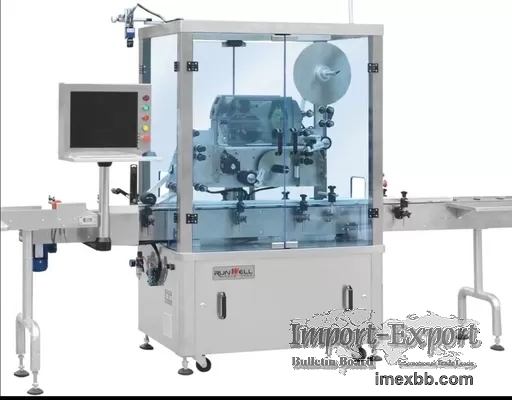

F-100 BFS Plastic Bottle Conjoined Labeling Machine





The process



Bottle feeding or manual feeding on the line → whole row to the labeling machine
conveyor line → third-phase online printing of labels → labeling → Missed and
missed online detection and removal → Next process



Technical Specification



No. Name Parameter
1 Speed 0～100 board/min
2 Precision ±1mm
3 Within the scope of the container Various small specifications
conjoined plastic bottles
4 Label volume size Max Outside DiameterΦ400mm, Minimal lumen diameter
Φ76mm
5 Overall dimensions (L)2900*(W)948*(H)2048
6 Weight 300Kg
7 Total power 2.5kw
The non-drying label parameters (for reference)

Label pitch: 2-4 mm ± 0.2 mm

Below on the label and the bottom paper spacing below: 2 mm

Bottom paper: need not less than 62 grams of white gration bottom paper, paper
density and has very good internal strength and light transmittance, solid and not
easily torn. Die cutting performance is wonderful.

Basic gram: greater than 62g/㎡ thickness: greater than 55 microns

Tensile strength: machine direction: 16kg/25mm

Tear resistance: machine direction: 25g/sheet Through the brightness: 52%



Device configuration schedule
NO. Name Model or specification Brand Quantity
1 Programmable controller SIEMENS(S7-200) Siemens 1
2 Power supply SS-100-24(DC24V/100W) Meanwell (Taiwan) 1
3 Air switch C65N-C10N C16A/C10A Schneider (France) 2
4 Relay MY2N-D2 OMRON(Japan)
5 Out-of-standard servo motor SGMJV-08ADA61 YASKAWA 1
6 Server Driver SGMJV-08ADA YASKAWA 1
7 Conveyor reducer NMRV040-1:30 MOTOWARIO 1
8 Standard buffer motor and reducer 4RK25GN-CT-4GN9K TWT 1
9 Supply standard buffer photoelectric HP100-A1 YAMATAKE 1
10 Label stock photoelectric HP100-A1 YAMATAKE 1
11 Label detection photoelectric WF2-40B410 SICK 1
12 Work object detection FS-V11 KEYENCE 1
13 CCDCCD detection system BOT-DG-DA-03M-03 DESAL 1
14 Computer host + display DELL DELL 1
15 The electromagnetic valve 411A-D0A-DM-DDAA-1BA MAC 1
16 Bearing NSK NSK
17 Conveying chain plate 820-K325 Uni 1
18 Inverter FC51 Danfoss 1
19
Cab

Cab printer

Cab Germany 1
