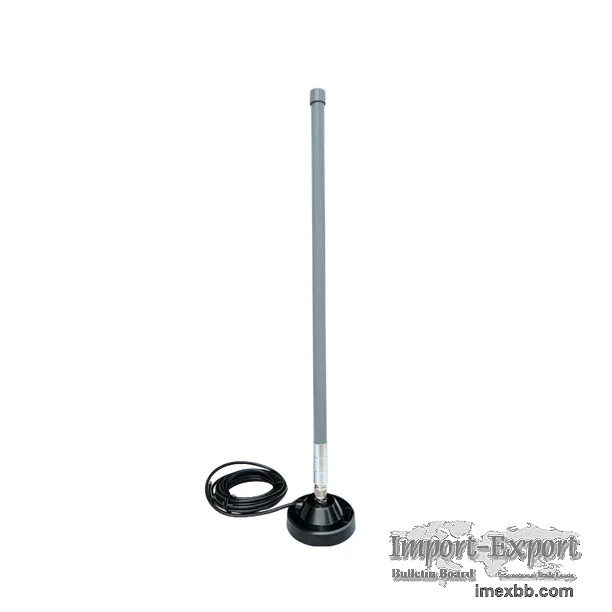

2.4GHz Omni Fiberglass Antenna With Magnetic Mount (AC-Q24I26)

2.4G Magnetic wireless band antenna delivers marked improvements in efficiency
and gain across all common frequencies (2400-2483MHz) in use for WIFI and
Wireless bands.

Small enough to be used indoors and outdoors, the antenna performance has been
designed to take advantage of any metal plate (ground-plane) it attaches to
deliver best of class performance.

Specification of 2.4GHz Omni fibreglass uhf antenna With Magnetic Mount

Electrical
Frequency Range 2400-2483MHz
Band width 83MHz
Gain 7dBi
V.S.W.R ≤2.0
Radiation Omni-Direction
Polarization Vertical
Maximum Input Power 50W
Impedance 50Ώ
Connector SMA Male(can be customization)
Cable Type RG58U
Cable Length 3M
Antenna Radome Material Fiberglass
Mounting way Magnetic Mount
Mechanical
Dimensions Φ110x660mm
Weight 1.18KG
Operating Temperature -40℃ to+70℃
RoHS Compliant YES

Features of 2.4GHz Omni Fiberglass Antenna With Magnetic Mount
01
The WiFi antenna is integrated magnetic base securely attaches.

02
Compact, antenna, Ground plane independent dipole antenna.

03
The antenna is design to install mounts to ferrous metallic surfaces.

We provide antenna oem, 915mhz fiberglass antenna, dual band fiberglass
antenna, fiberglass am fm antenna, fiberglass boat antenna, fiberglass hf
vertical antenna, fiberglass omni antenna, fibreglass aerial, etc. For more,
contact us.
