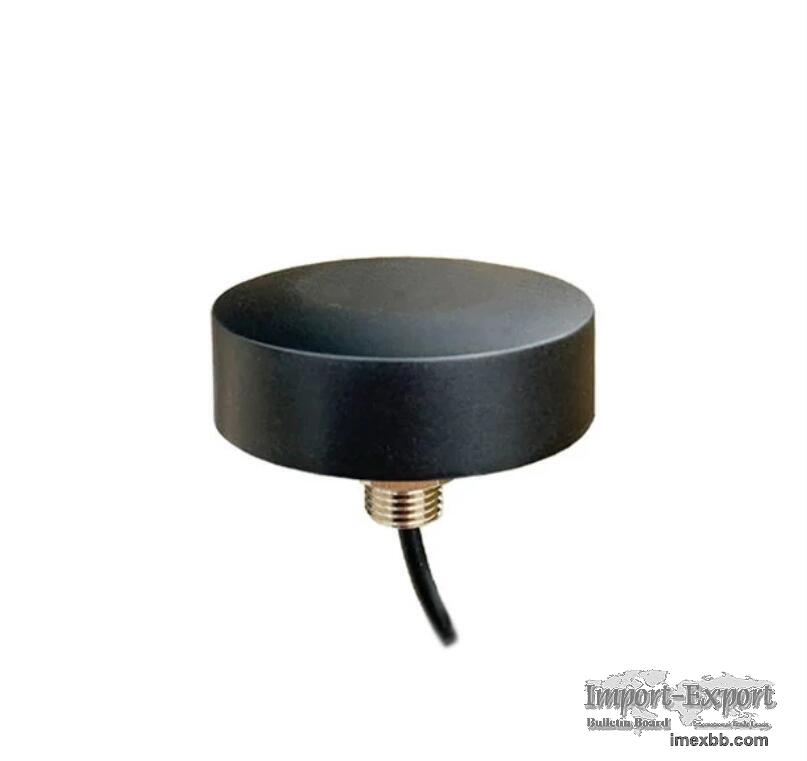

2.4GHz Omni-direction Screw Mount Antenna (AC-Q24M08)

2.4 ghz antenna delivers marked improvements in efficiency and gain across all
common frequencies（2400-2483MHz) in use for WIFI and Wireless bands.

Small enough to be used indoors and outdoors, the antenna performance has been
designed to take advantage of any metal plate (ground-plane) it attaches to
deliver best of class performance.

The antenna should be mounted in a location that is not obstructed by other
metallic surfaces which could interfere with signal transmission and
reception.

Specification of 2.4 ghz circular patch antenna

Electrical
Frequency Range 2400-2483MHz
Band width 83MHz
Gain 2.15dBi
V.S.W.R ≤2.0
Radiation Omni-Direction
Polarization Vertical
Maximum Input Power 50W
Impedance 50Ώ
Connector SMA Male(can be customization)
Cable Type RG174
Cable Length 3M
Antenna Radome Material ABS
Mounting way Screw Mount
Mechanical
Dimensions Φ47x14mm
Weight 35g
Operating Temperature -40℃ to+70℃
RoHS Compliant YES

Features of 2.4 5 ghz antenna
01
Antenna Compatible with WiFi Adapter, Desktop PC Wireless Mini PCI Express PCIE
Network Card Adapter.

02
2.4 GHz antenna working for ISM applications such as Sensing and remote
monitoring.

03
The antenna terminates in an SMA plug (male pin).

We provide china rf antenna, 2.4 g signal booster, 2.4 ghz 5ghz antenna, 2.4
ghz antenna outdoor, etc. For more about 2.4 ghz antenna long range and 2.4 ghz
antenna types, contact us.
