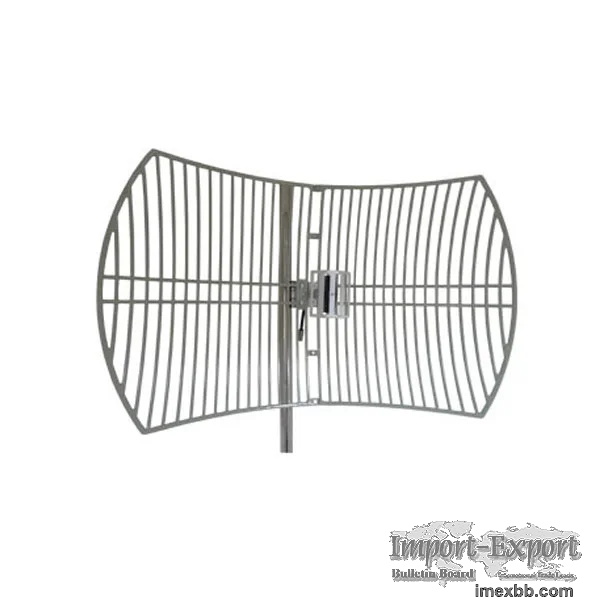

2.4GHz Long Range 21dBi Die Cast Grid Antenna (AC-D24G21)

Grid parabolic antenna is designed for the spread spectrum system,operates in
the 2.4-2.5 GHz band and provides 24dBi directional Parabolic Grid antennas
operation. This antenna features high gain, long coverage, lightweight, compact
structure and excellent wind-resistance.It is used for outdoor and the range is
up to 5-20 km 2.4 GHz antenna, which focuses the signal and reflects the power
off of the dish, creating very high power in a highly directional beamwidth.
You can think of the radio signal beam of a high gain parabolic dish/grid
antenna as shining a high power flashlight directly at your target. The higher
the parabolic grid’s gain, the narrower the beam. The 24dB Grid antenna, is a
simple, tested and excellent light weight design, now made out of aluminum and
powder coated for years of use. 2-piece dish assembles in minutes, includes all
hardware and pieces for assembly.

Specification of 2.4GHz long range antenna
Electrical
Frequency Range 2400-2483 MHz
Band width 83MHz
F/B Ratio ≥20dB
Gain 21dBi
V.S.W.R ≤1.5
Radiation Direction
Horizontal Beam width 12°
Vertical Beam width 16°
Polarization Vertical or Horizontal
Lightning Protection DC Grounded
Maximum Input Power 100W
Impedance 50Ώ
Connector N Female
Cable Type LMR240
Cable Length 30cm
Antenna Radome Material Aluminium alloy
Mounting way Pole Mount
Diameter of Installation Pole Ø50~Ø70mm
Mechanical
Antenna Dimension 400x600 mm
Weight 2KG
Operating Temperature -40℃ to+80℃
Rated Wind Velocity 60m/s
RoHS Compliant YES

Features of 2.4GHz long range wifi antenna
01
This antenna is supplied with a 60-degree tilt and swivel mast mountkit. This
allows installation at various degrees of incline for easyalignment. They can
be adjusted up or down from 0e to 60.

02
Due to the very high gain and the extremely strong signal bundling, the antenna
is particularly suitable for the use of punk-to-point connections at very high
distances.

03
The Parabolic Directional Antenna type "Grid" 2.4 GHz 21 dBi can establish long
distance connections.Mesh design and quality of aluminum materials it ensures
greater resistance when used outdoors.

For more information about rf signal antenna, please feel free to contact us!
