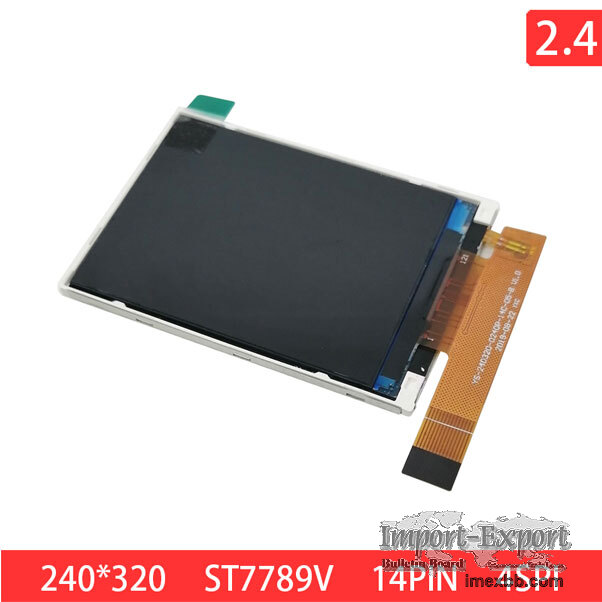

2.4 Inch 240x320 QVGA 14PIN SPI4 IPS 250nits TFT LCD Display Module

EX02401-A01 is a 2.4 inch, IPS active matrix TFT LCD module with transmissive
mode. The module dimension is 42.72(W)×60.40(H)mm; active area 36.72(W)×48.96(H)
mm (2.4"diagonal). Its resolution is 240x320 pixels (width 240pixels x height 320
pixels) and every pixel is made up of three vertical strips of Red, Green and Blue
dots.

General Specifications of 2.4 Inch 240x320 QVGA 14PIN SPI4 IPS 250nits

Outline Dimension of 2.4 Inch 240x320 QVGA 14PIN SPI4 IPS 250nits

Features of 2.4 Inch 240x320 QVGA 14PIN SPI4 IPS 250nits
The module features wide viewing angle thanks to the IPS panel which is one of the
most popular techniques on the market now. This 2.4 inch TFT LCD display module
has built-in IC ST7789V supporting SPI interface. The brightness is 250 cd/m2 with
contrast ratio 800:1. Operating temperature covers from -20~+70℃, storage
temperature range is from -30~+80℃..This single-display module is suitable for
use in industry, household appliances, toys and  medical treatment,small consumer
electronics and other fields.

As one of the most professional 2.4 tft manufacturers , we provide china display
tft lcd, 2.4 inch lcd china, china 2.4 inch lcd, china 2.4 tft display, etc. For
2.4 inch lcd price or more information, please feel free to contact us!

There are many tft panel suppliers, but we are one of the best choices for you.

Minimum Order: 100 pieces
