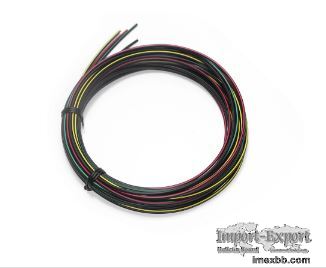

2.2mm Plastic Optical Fiber Cable For Failure Indicator SGS Listed

Supply of plastic optical cable for panel type short circuit ground fault
indicator

Failure Indicator Color Bar Fiber Optic Cable, Inner Diameter 1.0 And Outer
Diameter 2.2mm, Failure Indicator





1. Product classification, display mode, model and installation

Name Display Mode Model Function Installation Fixing Mode
Panel-type fault indicator Indicator light shows bus grounding, single-phase
short circuit detection, snap ring fixing, belt hoop
Installation location Power distribution equipment in power systems, oil
fields, chemicals, steel mills, railways and other cable systems

2. Basic principles
Short circuit principle: When the circuit has a short circuit fault, the short
circuit sensor senses the fault current, and at the same time converts this
signal into a data signal and sends it to the host, then the two-phase short
circuit fault indicator on the host panel is on, showing the line where the
fault occurred.
Grounding principle: The grounding part is based on the detection of the zero-
sequence current of the line. When a ground fault occurs in the system, if the
grounding indicator on the panel is on, it indicates that the cable system has
a grounding fault.
