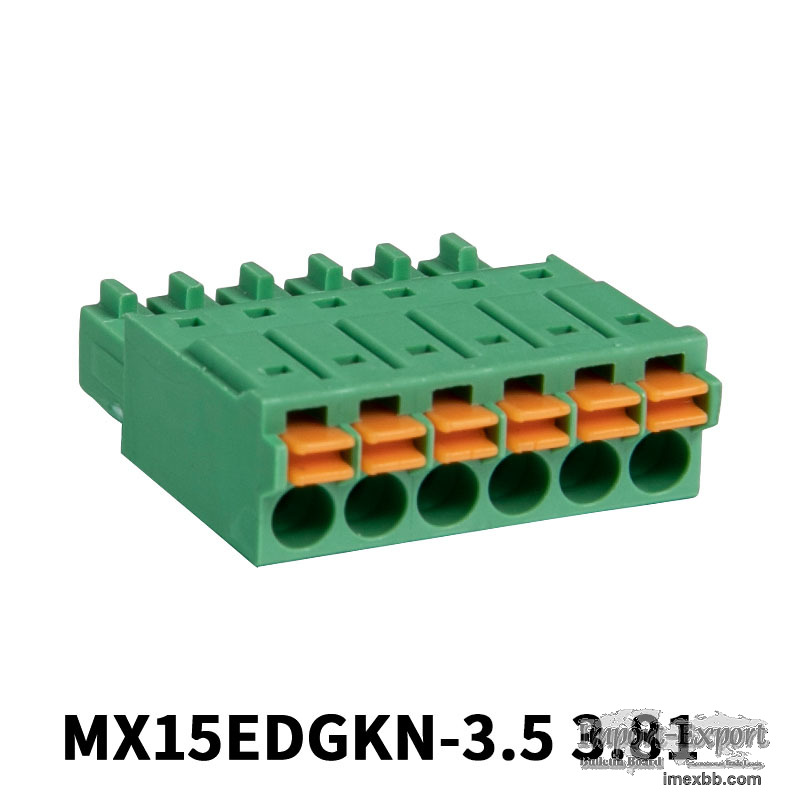

2-12P Screwless Pluggable Terminal Block

ltem Data
APPROVAL
Test standard IEC/ EN61984 : 2009 1 UL1059
Pitch 3.5/3.81
Poles 02-12P
EN61984 Test data UL certificate NO:E482989
Rated insulation voltage 250
Rated current [A] 8
Rated connection capacity solid/stranded [mm] 0.2-1.0
Surge voltage category/pollution degree/material group /2/
Rated impulse voltage [KV] 2.5
UL1059 Test data UL File Number E228872
Use group B C D
Voltage 300 / 300
Current 8 / 8
Rated connection capacity (solid/stranded) [AWG] 28-16
Rated torque /
General data /
Screw /
Inflammability class UL94 V-0
Ambient temperature [°C] -40~+105
Relative humidity 5%-95%
Inspection standard MIL -STD-105E II
AQL 0.65
Warranty 12 months
Material and plating /
Housing PA66
Contact Copper alloy , Sn plated
Spring Stainless steel

https://www.nbmax.com.cn/product/term , inal-block-1/plug-in-terminal-
1/mx15edgkn-3-5- , 3-81.html

Minimum Order: 1000 pieces
