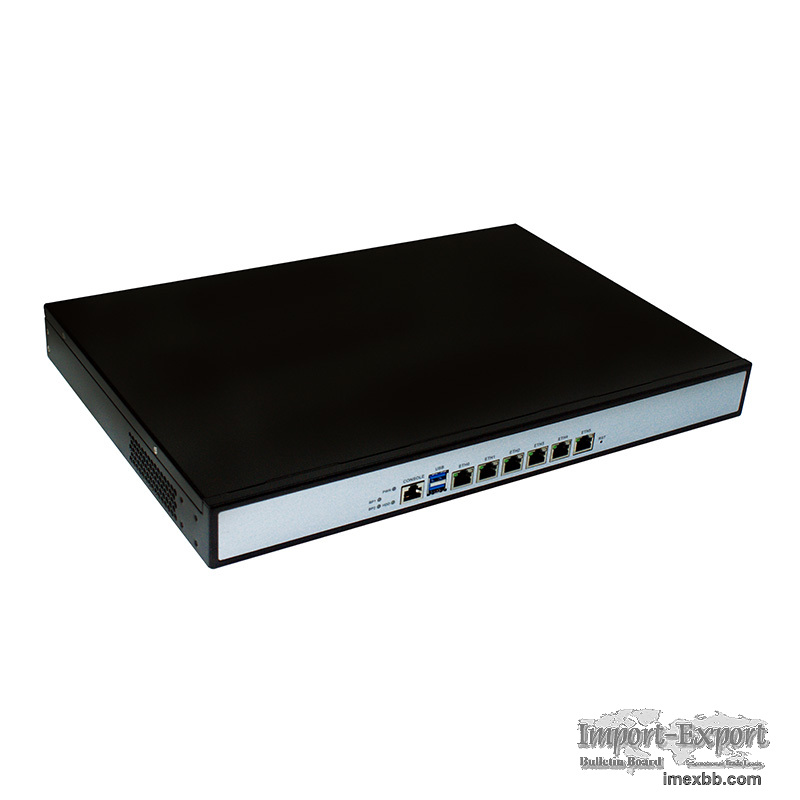

1u network appliance hardware with motherboard 6 networking GbE poorts

F19611 is a Rackmount network Hardware Appliance,1U height, motherbaord
onboard J1900 CPU, 6 or 10 RJ-45 GbE network ports, one SATA and one mSATA
interface. SSD/ HDD/ RAM, single or redundant power supply
Features

Onboard Intel Bay Trial J1900 Quad-core Processor, 2.0GHz, L2 Cache
One 204-pin DDR3-L DIMM slots, up to 8 GB
Six Intel PCIe GbE controllers, support two channels bypass
One SATA interface and one mSATA interface
Two USB3.0, One CF TypeII
One RJ45 for RS232 communication
Optional one nic module adding 4 GbE network ports
Specifications

Motherboard

, CPU Onboard Intel Bay Trial J1900 Quad-core CPU
System memory One 204-pin DDR3-L DIMM slots, up to 8GB
Storage

Interface One SATA and one mSATA connectors
Hard Drive One 3.5/2.5" HDD trays
CF slot One CFII slot
Ethernet

LAN Port Six 10/100/1000Mbps RJ-45 ports

Ethernet Controller Six Intel PCIe GbE controllers

BYPASS 2 channels BYPASS

Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS
function LED
System I/O

USB Two USB3.0
COM One RJ-45 COM
Reset Button One built-in reset button
Indicator One Power LED, one HDD LED
Video Built-in one VGA interface, support hot plug(Internal)
Power supply

Power consumption Built-in 60W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power
Environmental

Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing
Mechanical

Chassis Color Black or OEM
Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
Construction 1u chassis, Heavy duty metal
Dimensions (D x W x H) 430x295x44.5mm
Weight 9.6 kg

Minimum Order: 1 pieces
