1ppb To 3ppb Ultrapure Water Systems Reverse Osmosis Water Treatment System

Description
1ppb To 3ppb Ultrapure Water Systems Reverse Osmosis Water Treatment System

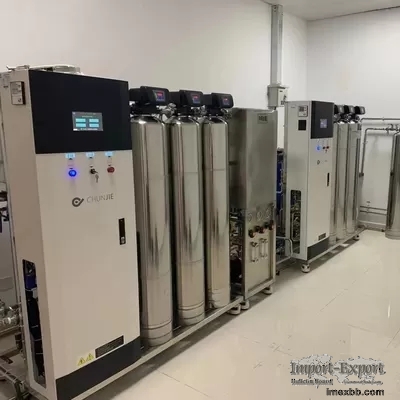

Reverse Osmosis Water Treatment System



Description

Our Company's Ultrapure Water Equipment Is Widely Used In Different Fields
And Uses Special Filter Element Pretreatment To Effectively Remove Chlorine
And Organic Pollutants In Raw Water. Reverse Osmosis Membrane Elements
Further Remove Minute Impurities And Ions From The Water While Removing Salt
And Bacteria. The Final Precision Filtration Improves Water Quality And
Inhibits Bacterial Growth. Our Water Treatment System Incorporates Advanced
Purification And Monitoring Technology To Provide Customized Solutions Based
On Water Source, Daily Water Demand And Other Parameters.



Application

The Ultrapure Water Purified By The Water Treatment System Can Be Used For
Environmental Analysis, Physical Research Experiments, Various High-
Precision Instrument Analyses, Molecular Biology And Life Sciences, In Vitro
Fertilization, Tissue Culture, Animal Cell Culture, Two-Dimensional
Electrophoresis Experiments, Protein Purification, Amino Acid Analysis,
Genetic Research, Brewing, Pharmaceuticals, Beverages, And Mink Production,
Etc.



Features

1. Fully Automatic Touch Screen Controller: The Equipment Adopts A Fully
Automatic Touch Screen Display Controller And Is Equipped With An Animated
Flow Chart To Monitor The Process Operation Status Of Each Water Treatment
Unit In Real Time.

2. Online Status And Parameter Display: Parameters Such As Flow, Pressure,
Source Water And Produced Water Quality Are Monitored Online And Displayed
Digitally To Facilitate Real-Time Understanding Of Equipment Operation,
Monitoring And Analysis.

3. Automatic Protection And Alarm Functions: The Equipment Has Functions
Such As Power-On Self-Check, Water Shortage Protection Alarm, Automatic
Reset After Power Outage, High And Low Voltage Automatic Shutdown
Protection, Etc., To Realize System Linkage And Automatic Shutdown To Deal
With Problems.

4. RO Membrane Anti-Scaling Program Design: The Reverse Osmosis Host Is
Equipped With An RO Membrane Anti-Scaling Program, Which Periodically
Flushes The RO Membrane Surface To Effectively Protect The RO Membrane
Operation.



Specifications & Parameters:

Feedwater Required Tap Water
Power Supply AC220V/50Hz
Enviroment Temperature 5~40℃, feedwater temperature 5~35℃
RO Removing Rate ≥98%
TOC 1-3ppb
Heavy Metal <0.1ppb
Microorganism <1ppb
Debris Particles
(>0.1um) <1/Ml



Model
Output Water

(L/H 25℃)

Output Water Quality (MO.com)
Voltage/Power

(V/KW)

Operating Pressure

(Mpa)

Machine Size

(Mm)

CJ-ROU-80 ≥80 ≥10.0 AC220/0.2 0.4 520X480X1150
CJ-ROU-100 ≥100 ≥10.0 AC220/0.2 0.5 520X480X1150
CJ-ROU-150 ≥150 ≥10.0 AC220/0.3 0.5 520X480X1150
CJ-ROU-200 ≥200 ≥10.0 AC220/0.4 0.6 520X480X1150
CJ-ROU-250 ≥250 ≥10.0 AC220/2.5 0.6 520X480X1150
CJ-ROU-300 ≥300 ≥10.0 AC380/3.0 0.8 1300X700X1750
CJ-ROU-600 ≥600 ≥10.0 AC380/3.5 0.8 1300X700X1750
CJ-ROU-1000 ≥1000 ≥10.0 AC380/3.8 0.8 1700X780X1700
CJ-ROU-1500 ≥1500 ≥10.0 AC380/4.2 0.8 1700X780X1700
CJ-ROU-2000 ≥2000 ≥10.0 AC380/5.2 0.8 1700X780X1700
