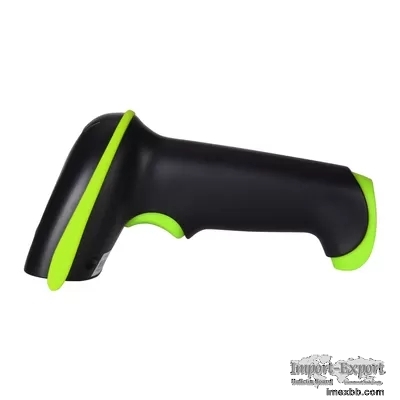

1D Cordless Laser Bar Code Scanner Bi Directional UPC Ean Code Scanner

Product Description
YHDAA 1D Cordless Laser Barcode Scanner,328 Feet Transmission Distance Bar
code Reader UPC EAN Code

32Bit CPU super decoding ability that the speed can up to 100/sec.Anti-Shock
Silicone: the Black silicone protective cover can avoid the scratches and
friction while falling from the height of 6.56 feet; the technical of IP54
sturdy which protect the wireless barcode scanner from dust and moisture

Features

● Color:Yellow/ Black/ Green/Blue Optional.

● Read barcode as small as 3.3 mill.

● Support over twenty different countries' keyboard layout.

● Built-in 2600mAh battery, super-long standby time.

● 2.4G Wireless communication distance outdoor 100m,indoor 80m.

● With mini USB receiver, plug and play, Ergonomic design, comfortable to
hold.

● Support to put prefix or suffix before or after scanned data,turn on/ off
buzzer,identity barcode type, add keyboard keys (TAB, CR&LF, etc.)

● Application fields:Supermarket, Retail, Warehouse,Logistic,Library,
Medical etc.

Product Specification

Transmission mode : 2.4G Wireless/Wired

Scanning type : bi-directional

Distance : 100m/1.5m

CPU : ARM 32-bit Cortex

Storage : 100000 barcodes

Battery: 3.7V-2600mAh

Trigger Mode : Button,Continuous

Light source : 650nm LD

Printing Contract : ≥25%

Indication : Buzzer & LED

Resolution : 3.3mil

Scanning width : 30cm

Decoding speed : 300scans/sec

Bit error rate : 1/20million

Button life : 8000,000 times

Laser life:12000 hours

Scanning angle : rotor angel±30°,inclination± 45°,declination ± 60°

Anti inference : industrial lighting or sun will not make any difference

Working current : 3.3Vx40mA Standby current :18uA-5mA

Working time : 7 to 10 days

Charging power : 5V-400mA

Drop test : 2.0m

Certificate : CE,FCC,ROHS,IP54,FDA,SGS

Packaging Details

Standard List : Scanner*1, USB Cable *1, Receiver*1, Manual *1, Box *1

Single Package Size : 167*80*100mm

Single Gross Weight : 0.28kg

50pcs/CTN Carton Size : 535*420*350mm

50pcs/CTN Carton G.W. : 14Kg, N.W:12Kg
