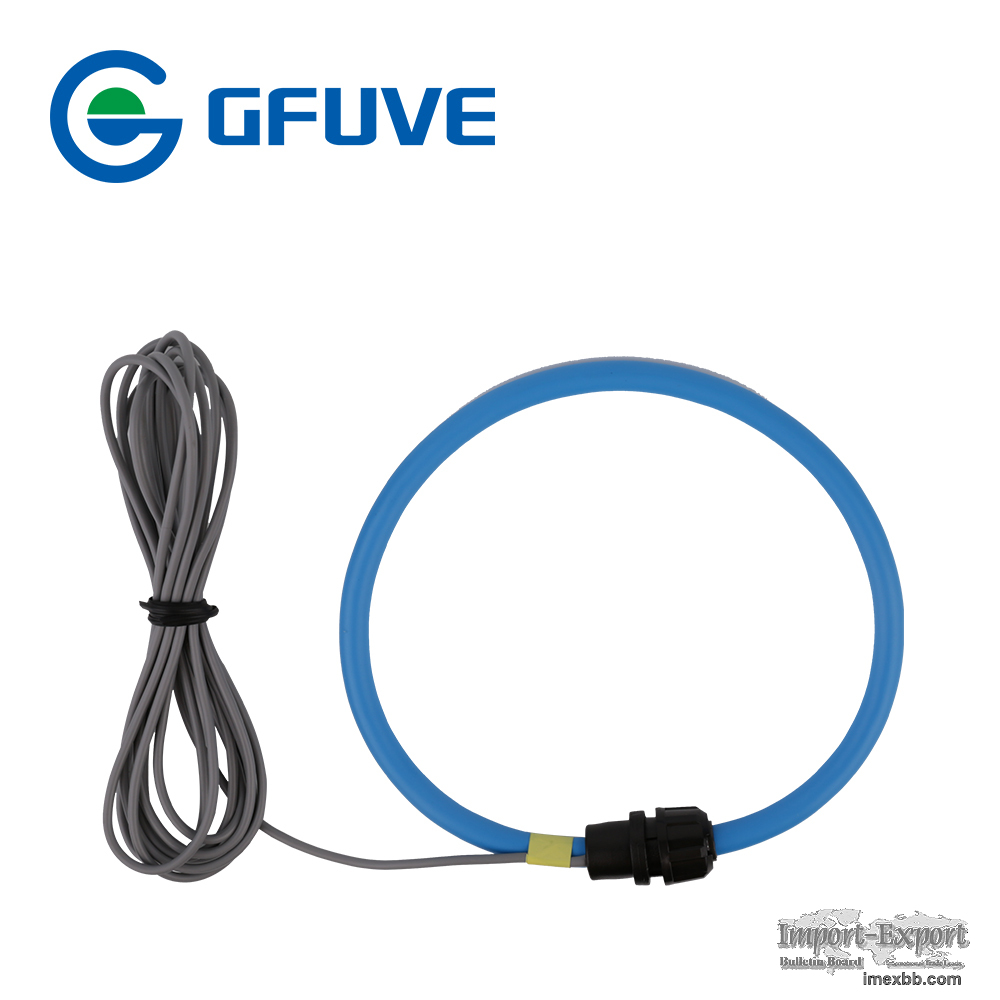

1A - 100kA AC Flexible Rogowski coil current sensor Probe GFUVE FQ-RCT02

The FQ-RCT02 flexible current sensor is an AC current sensor composed of a
flexible Rogowski coil. The flexible current sensor permits measurements on
conductors where standard clamp-on probes cannot be used. In particular, it can be
installed in tight spaces, around cable bundles, around wide or large bus bars, or
even wrapped around irregular shapes. It is suitable for large current measuring.
They combine the benefits of a thin, flexible, clip-around Rogowski (sense) coil
with a signal conditioner providing accurate, true rms measurement, of voltage
output 100mV/kA. Models range from 1A to 100,000Arms with an accuracy of 1% of
reading. Rated EN 61010, 600V CAT IV, 1000V CAT III. Low cost AC current
measurement probe designed to plug into digital multimeters, oscilloscopes, power
quality analysis and power or harmonic meters. The length of the flexible current
sensor can be selected from 40cm to 100cm. Fits around large or small conductors.
Capable of getting into tight or difficult spaces. Ideal for measuring AC current
in a group of conductors.

FEATURES
Flexible and light weights
Easy & quick installation in tight spaces
No danger from open-circuited secondary
No core saturation or damage if overloaded
Excellent linearity 0.2% for current measurement;
Multi-size are available

GENERAL DATA
Ambient operating temperature: -30~+80°C
Ambient storage temperature: -40~+90°C
Standards safety：EN 61010-1, EN 61010-2-032, EN 61010-2-031, IEC60044-1, &
IEC61869-2, 1000V CAT III

APPLICATIONS
Power quality monitoring
Power meters
Smart logger
Energy sub-meters
Distributed measurement systems
DMMs, oscilloscopes

Minimum Order: 3 pieces
