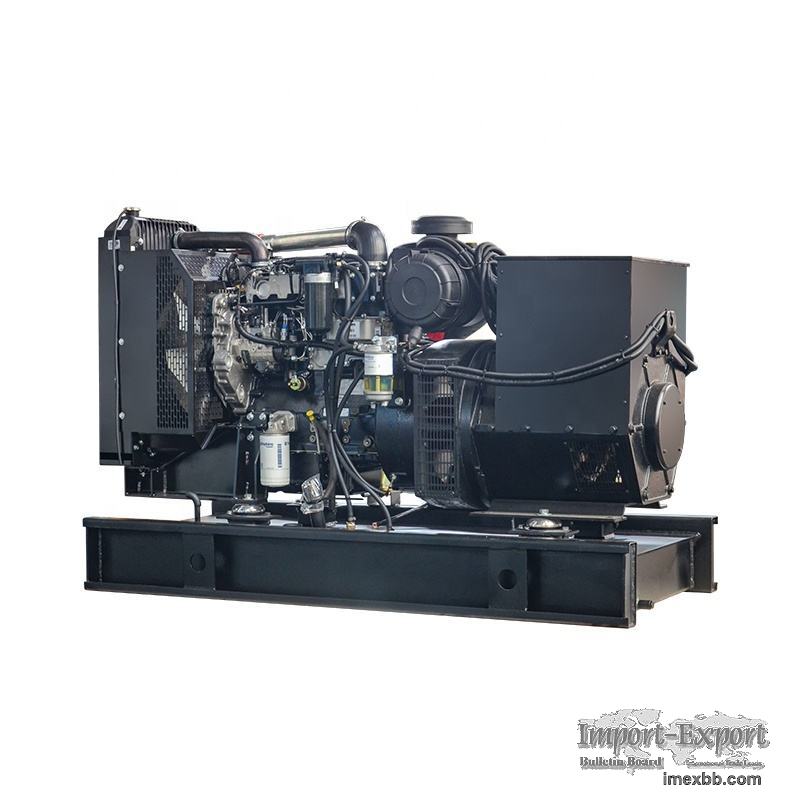

188KVA diesel generator set with PERKINS engine

Prime power: 150kw/187.5kva
Standby power: 165kw/206.3kva
Engine model:1106A-70TAG4
Rated voltage: 230V/400V
Number of Cylinders: 6 cylinders inline
Cycel: 4 Stroke
Aspiration: Turbocharged
Bore*Stroke : 105*135mm
Compression rateio:18.2:1
Speed Governor: Mech
Cooling system; Forced water cooling cycle
Lube oil: 7.01L
Fuel consumption 200g/kw.h
Starter motor:DC24V
Control Panel: Smartgen/Deepsea
Alternator:Stamford,Marathon
Leroysomer,Evo Tech,EngGA etc )
Excitation type: Brushless self excitation
Frequency:50Hz
Rated speed:1500rpm
Phase: 3phase 4 wire
Voltage range:≥5％
Power factor: 0.8
Insulation grade: H
Protection level:IP23
Type: open /silent
Warranty: 1 year
Size: 2500*900*1500mm
Weight:1900kgs

Minimum Order: 1 sets
