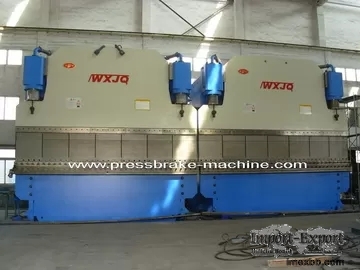

16m Light Pole Bending 3200T Bouble Hydraulic Cylinders Tandem Press Brake

16m Light Pole Bending 3200T Bouble Hydraulic Cylinders Tandem Press Brake
Equipment





steel channel processing machine/street light pole CNC hydraulic tandem press
brake machine

and sheeet metal pres forming



CNC sheet bending Machine Performace:



the CNC press brake machine can bend long work piece in two press brake work
together.

the machien also can operate in individual Single and linkage action are
available.
Torque synchronization, electrical and hydraulic synchronization are
guaranteed.
Different CNC controllers to make multi-axis controlling are optional.

Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke
controlled

by precision mechanical nut depth stops built into each cylinder.
Parallelism is ensured by torsion bar that can be easily adjusted by clutch
system.
Segmented heavy duty 86° offset top punch is segmented for return bend
clearance,

complete with European style quick release punch holder with an adjustable
wedge

clamping system for crowning.Intermediate clamp has safety key to stop punch
dropping.

Conveniently mounted control box on pendant for quick swivel and adjustments.
Mono-block steel frame design, welded then machined to ensure minimal bed
deflection

under load Enclosed rear gate with micro safety switches complete with sliding
rear

door for easy access.
European quick release style top punch and clamping system, allowing operator

to change position of tooling to suit multiple requirements on complex
applications.

This feature ensures minimum down time, more productivity and results in
reduced

cost per finished product.
Sliding steel fabricated sheet supports enabling a wide range of material sizes
to

be aligned and supported at the correct required height. This feature is
achieved

with a "T" slot machined down the total length of the die bed, sheet supports
are

also adjustable vertically to assist in supporting material with return bends
folded.
Adjustable sliding blocks control the machines beam to provide desirable open

height distance to the (slow speed) mute bending point.



CNC hydraulic tandem press brake Machine Feature:

Tandem plate bending machine mode can be achieved by PSH or WE67K through the
linkage unit.

The tandem mode is applicable to the super long work pieces processing.
Being used extensively in the field of engineering plant, poles and tubes
production.
The two machines can be either operated respectively or tandemly.

Either machines configuration and performance are as good as the single PSH
Tandom mode can be achieved by PSH or WE67K through the linkage unit.
