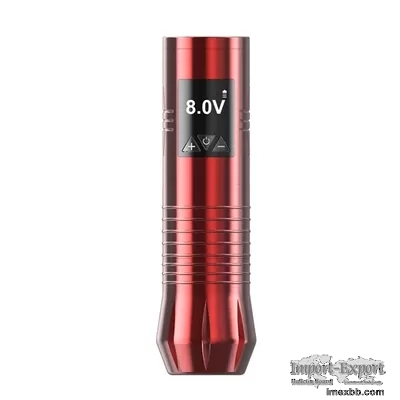

1600mAh Professional Wireless Tattoo Machine Pen With LCD Screen Speed Adju

Red Color Wireless Tattoo Machine Rotary Digital LCD Screen Wireless Tattoo
Machine Pen Assorted Coreless Motor Gun



Wireless Tattoo Machine Rotary Digital LCD Wireless Tattoo Machine Pen Assorted
Coreless Motor Gun
Main products :
1. Wireless Tattoo Machine
2. Wireless Permanent Makeup Pen
3. RCA & DC Tattoo Machine
4. Rotary Tattoo Machine
5. Tattoo Battery & Grip
Our company can provide internal structure and external design , combined with
the motor size, needle size, and the strokes requirements, to provide customers
with high-quality tattoo machines . Low vibration, strong strength, novel
appearance and stable quality are our goals.

1600mAh Professional Wireless Tattoo Machine Pen With LCD Screen Speed
Adjustable 0
Product Description

Material Aluminum Alloy
Available Stroke Options 0-4mm
Length 130mm
Design Weight 132g
Newly Designed Ergonomic Grip 38.44mm
Rate Voltage 10v
Output Power 5w
Support Operation Voltage 5.0v - 12.0v
Default Start Voltage 8.0v
Battery Type Lithium Polymer
Changing Power Full charge in 2 hours when used with the USB-C charging cable
Power Capacity 1600mAh
Battery life Up to 10 hours of battery /Dependign on powder level
Charging port For best results , use USB-C charging cord included
Power Supply 5-12 Volts ; 66-199 Hertz
Motor Coreless motor
Motor Dimensions

Motor Code Type Diameter (mm) Length (mm) Voltage (v) No-Load
Speed (rpm) No-Load Current (mA) Weight (g)
EM2016 DC Brush coreless 26 10 12 9000 ± 10% ≤40
22
M1725 DC Brush coreless 17 25 12 12000±15% ≤40
25
M2025 DC Brush coreless 20 25 12 10000 ±10% ≤40
35
M2225 DC Brush coreless 22 25 12 9000 ± 10% ≤25
45
M2016 DC Brush coreless 20 16 12 10800 ±10% ≤20
25
M2607 DC Brush coreless 26 7 12 9500 ± 10% ≤20
20
M2610 DC Brush coreless 26 10 12 8800 ± 10% ≤20
25
M1526 DC Brush 15.3 26.3 12 13000 ±10% ≤50 15
M2412 DC Brush 24 12 12 10000 ±10% ≤75 20
M2430 DC Brush 24 30 12 9000 ± 10% ≤60 50
Available Batteries

1 Product model PL751460 Size 7.5*14*60mm
Capacity 600mAH Battery voltage 3.0-4.2V
Service life More than 500 cycles Service temperature minus10℃-40℃
Texture of material Polymer lithium battery Charging voltage DC4.2-
5V
Charging interface / Weight About11g
2 Product model PL801660 Size 8.0*16*60mm
Capacity 800mAH Battery voltage 3.0-4.2V
Service life More than 500 cycles Service temperature minus10℃-40℃
Texture of material Polymer lithium battery Charging voltage DC4.2-
5V
Charging interface / Weight About13g
3 Product model PL802040-2P Size 16*20*60mm
Capacity 1200mAH Battery voltage 3.0-4.2V
Service life More than 500 cycles Service temperature minus10℃-40℃
Texture of material Polymer lithium battery Charging voltage DC4.2-
5V
Charging interface / Weight About24g
4 Product model PL102540-2P Size 20*25*40mm
Capacity 1600mAH Battery voltage 3.0-4.2V
Service life More than 500 cycles Service temperature minus10℃-40℃
Texture of material Polymer lithium battery Charging voltage DC4.2-
5V
Charging interface / Weight About28g
5 Product model PL102050-2P Size 20.0*20*50mm
Capacity 2000mAH Battery voltage 3.0-4.2V
Service life More than 500 cycles Service temperature minus10℃-40℃
Texture of material Polymer lithium battery Charging voltage DC4.2-
5V
Charging interface / Weight About33g
6 Product model PL901855-2P Size 18*18.5*55mm
Capacity 2400mAH Battery voltage 3.0-4.2V
Service life More than 500 cycles Service temperature minus10℃-40℃
Texture of material Polymer lithium battery Charging voltage DC4.2-
5V
Charging interface / Weight About40g
7 Product model No. 5 / AA Size 14.5*50mm
Capacity 2600mWh Battery voltage 1.5V constant voltage discharge
Service life More than 1200 cycles Service temperature Minus 20 ℃ -
60 ℃
Texture of material Li ion (lithium battery) Charging voltage
DC 5V
Charging interface Type-C interface Weight About 18g
8 Product model No. 7 / AA Size 10.5*44.5mm
Capacity 750mwh Battery voltage 1.5V constant voltage discharge
Service life More than 1200 cycles Service temperature Minus 20 ℃ -
60 ℃
Texture of material Li ion (lithium battery) Charging voltage
DC 5V
Charging interface Type-C interface Weight About 14g
Customized details

1. OEM/ODM tattoo machines are highly appreciated, customized are welcome .
2. The length, diameter, color and structure of the tattoo machine all can be
customized .
3. Customer need to confirm which motor to use , as motors have lots of
dimensions , and it will depends on the function too .
4. Customer need to confirm the needles which to be normally used or matched ,
as needles have different sizes in the market .

Tattoo Pen machine appearance size
1600mAh Professional Wireless Tattoo Machine Pen With LCD Screen Speed
Adjustable 1

Available internal structure

1600mAh Professional Wireless Tattoo Machine Pen With LCD Screen Speed
Adjustable 2

Product characteristics
1: stable power output
2: no fever for a long time
3:Color fast, accurate and steady
4: Improve work efficiency


1600mAh Professional Wireless Tattoo Machine Pen With LCD Screen Speed
Adjustable 3
