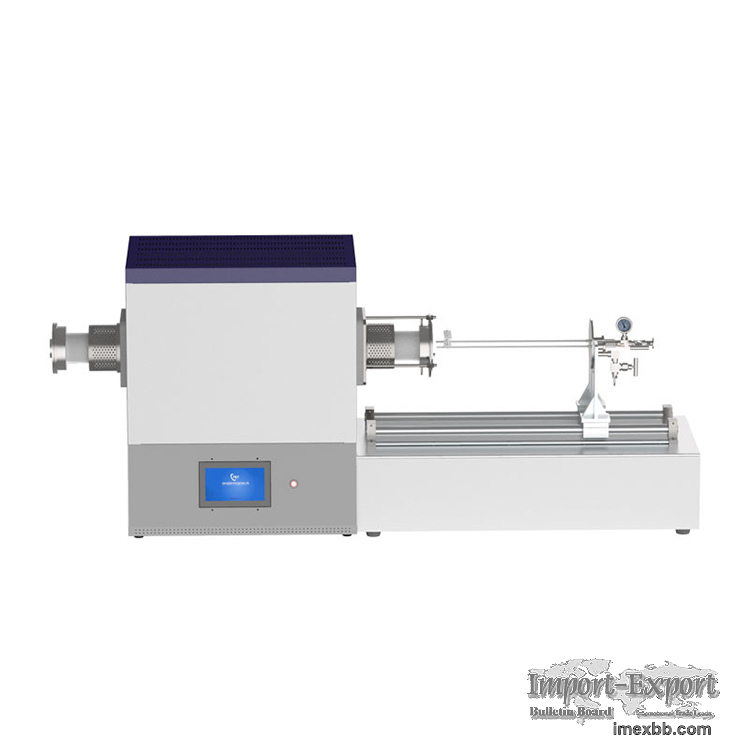

1600C Horizontal Flash Sintering Furnace with 3KW Programmable Power Source

1600C Horizontal Flash Sintering Furnace with 3KW Programmable Power Source

CY-1600X-FS3KW is a horizontal tube furnace with 3KW programmable AC power source
designed for exploring the flash- sintering for ceramic materials at a lower
cost.The tube furnace comes with 80mm OD alumina tube and a sliding sample fixture,
which can preheat sample up to 1600oC. The Sample holder will press electric wire
to the sample via ceramic screw to pass through programmable AC power source which
is programmable up to 1500W power.
Flash-sintering is an new technology which is used widely in the research of solid
state electrolyte, SOFC and fero-magnetic & Thermo-electric materials.

Tube Furnace
208 - 240 VAC, 50/60Hz,  5.2 KW max. power consumption
Working temperature:  1600°C continuous and 1700°C Max.
Heating Zone length: 18" ( 457 mm )
Constant temperature zone: 6"  ( 150 mm) within +/- 1°C

Temperature Control
PID automatic control via solid state relay with 30 steps programmable
and  +/-1°C accuracy
Built-in Over Temperature and Thermocouple Failure Protection
B-type thermal couple

Vacuum Sealing Flanges & Sample Fixture
Vacuum Flanges are made of stainless steel which can reach the vacuum to 10-2 torr
by mechanical pump and 10-5  torr by turbo pump.
Left Side Flange:
30 mm dia. Quartz observation window
 Needle valve with 1/4 NSP connector
Right Side Flange：
KF25 vacuum port to connect to a vacuum pump
Two electric wires feedthrough. Wires are made of Platinium with 1 mm diameter
Needle valve with mechanical vacuum gauge.
Sample fixture is built-in the inside flange.
This flange is slidable to make sample loading easy.

Programmable AC Power Source
The programmable AC power source is to connect the electric wire at the feedthrough
at the right side flange.  After pre-heating,  AC power will pass a sample as
programa setting to produce more heat rapindly, which results in sample sintered in
high density.  The power parameters can be set via included labtop. Power source
specifications ae as the below
Input Voltage: AC220V±10%,  50/60Hz， single phase
Power Capacity:  3000 W Max.
Circuit Type: IGBT, PWM
Output Voltage： 50V-300V adjustable with ≤1% stability
Output Frequency:      50/60Hz fixed with ≤0.01% stability
Protection:   Overload, over temperature , and short circus
PC programmable：Laptop with pre-installed software is included for program
setting
Optional :       DC power  source 400V/10A is available upon request at the
extra cost

Dimensions & Weight:1950L×500 W ×720 H, mm;150Kg
Warranty: One year limited warranty with lifetime support (Consumable parts
such as tubes and o-rings are not covered by the warranty)
Compliance:CE Certified

Minimum Order: 1 sets
