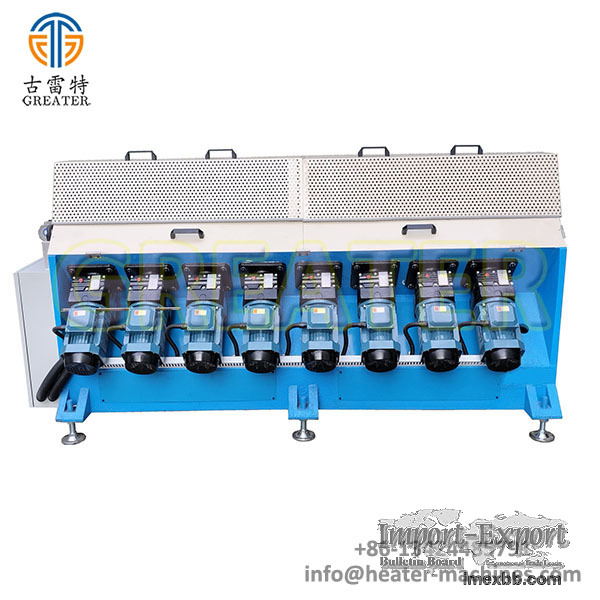

16 station Heater shrinking machine reducing equipment

Function:
Reduce heater to increase density;

Main features:

1. whole casting for body of the machine, ensure stable use in future.;
2. According to different diameters and orders, can make in uniform speed or un-
uniform speed;
3. change related rollers can reduce different diameters heaters;
4. When the heater is blocked, the machine will automatic shutdown;
5. with small size, less noise, easy adjustment;
6. suitable for different materiall metal tubes;
7. change rollers, can reduce round, square, flat heaters.
8. can make in 12 station, 16 station, 18 station and 21 station.


Application:
Round heater reduce, such as tubular heater, cartridge heater, cable heater;
Oblate heater reduce, such as railway heater reduce, fryer heater;

Information need for order GT-JY16 roll reducing machine:
Tube diameter before and after reduce, such as Φ10-8.5mm
Length before reduce；
Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz)；

speed: uniform speed or un-uniform speed;

Minimum Order: 1 sets
