15KW 30-100KHz High Frequency Induction Heating Brazing Machine

Descriptions

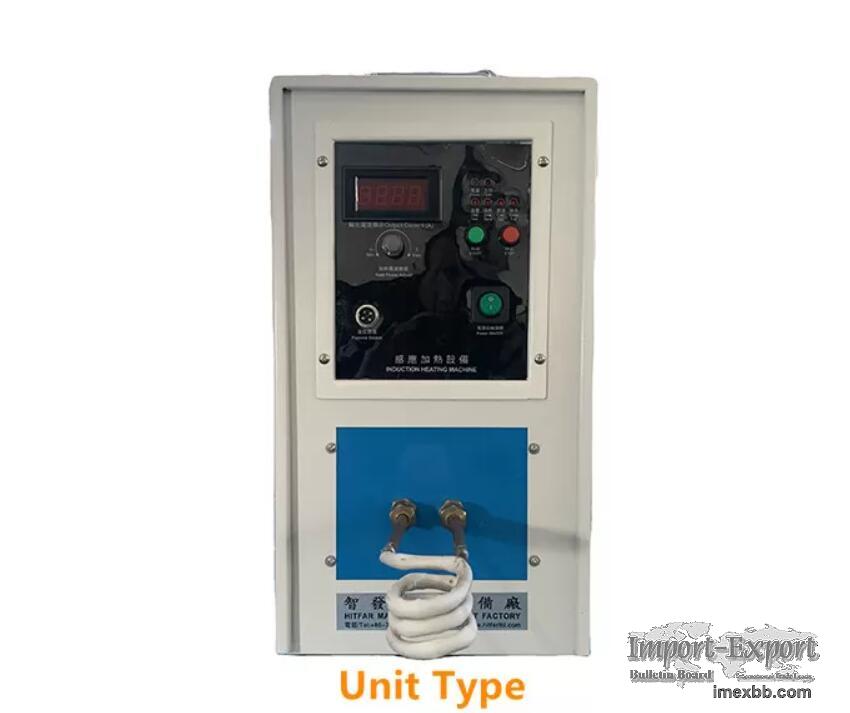

Model No.:ZG-HF15 (2 Types for Choice: Unit or Split Type)
Input Power: 220V-1P
Output Working Power: 5-15kw adjustable
Main Function:heat treatment of small metal parts, brazing and welding of tools
and blades and pipes etc
Main Advantage: heating speed very quick, temperature can reach to 2500C
degrees.
Main Components: Induction Heating Controller (+ Transformer ) + Induction Coil
high frequency induction heating machine APPLICATION
Take Brazing and Welding as an example:
1. High frequency Induction heating brazing for all kinds of small metal parts.
1. Welding of diamond heads, welding of carbide saw blades and welding of
diamond tools, abrasive tools and drilling tools.
2. Welding of cemented carbide tools for machining. Welding of cutting tools
such as turning tools, planers, milling cutters, reamers, etc.
3. Welding of mining tools, such as "one" bit, column tooth bit, dovetail
briquette bit, riveting rod bit, welding of various shearer picks and various
road-header picks.
4. Welding of various woodworking tools, such as welding of various woodworking
planers, milling cutters and various woodworking drills.
Water-cooled Induction Heating Machine MAIN FEATURES
(1) Output working frequency can reach to 100Khz according to the loading.
(2) 100% loading duty, which can be working 24 hours per day.
(3) Heating Power can be adjusted from 3kw to 15kw.
(4) Heating time and retaining time can be set up from 1 seconds to 999
seconds.
(5) Water cooling type via chiller or small pump and tank.
(6) Net weight only around 18kgs, easy to transportation.
(7) Auto-protection functions be equipped like over current, over power, water
failed, etc.
(8) Can be worked in 2 modes: manually or automatically by setting.
