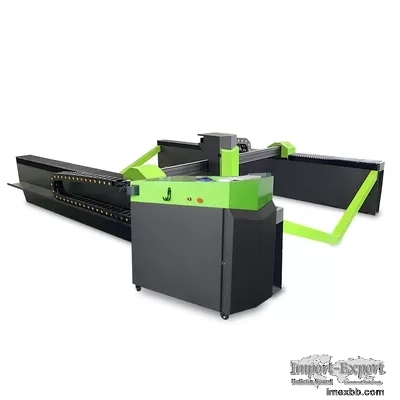

1530 CNC Sheet Metal Fiber Laser Cutting Machine

PRODUCT DESCRIPTION
high speed portable mini laser cutting machine cnc metal cutter machine

1530 CNC Sheet Metal Fiber Laser Cutting Machine 0

1530 CNC Sheet Metal Fiber Laser Cutting Machine 1
1. Fiber laser cutter power: 500W, 750W, 800W, 1000W, 1500W, 2000W, 3000W, 4000W,
6000w, 10000w, 12000w, etc.
2. Fiber laser generator: JPT, RAYCUS, MAX, NIGHT, IPG etc.
3. Fiber laser cutter materials: Iron, aluminum, carbon steel, stainless steel,
copper, hardware and another metal sheet materials.
4. Other machine optional parts can be chosen, such as, rotary axis, exchange
working table, full cover, etc.
5. China Top fiber laser machine cutting manufactuers, best price and high quality,
with CE etc certificates.

1530 CNC Sheet Metal Fiber Laser Cutting Machine 2

Model
3015 Fiber Laser Cutting Machine
Working Size
1500*3000mm
Laser Power
1/1.5/2/3/4/6/8/12KW
Laser Wavelength
1080nm
Laser Beam quality
<0.373mrad
Working Life of Fiber Source
More than 10,0000 hours
Position Type
Red Dot Pointer
Cutting Thickness
0.5-10mm Within The range
Max. Idle Running Speed
80-110M/min
Max acceleration
1G
Reorientation Accuracy
Within ±0.01mm
Lubrication System
Electrical Motored
Cooling mode
Water cooling and protection system
Machine power
9.3KW / 13KW /18.2KW /22.9KW
Auxiliary Gas for Cutting
Oxygen, Nitrogen, Compressed Air
Compatible Software
AutoCAD, CorelDraw, etc.
Handle Control
Wireless Control Handle
Graphic Format
DXF/PLT/AI/LXD/GBX/NC code
Power Supply Voltage
220V 1Ph or 380V 3Ph, 50/60Hz
Warranty
2 Years
1530 CNC Sheet Metal Fiber Laser Cutting Machine 3

Packing & Delivery
1530 CNC Sheet Metal Fiber Laser Cutting Machine 4
Company Profile
00:00

00:04


1530 CNC Sheet Metal Fiber Laser Cutting Machine 5
1530 CNC Sheet Metal Fiber Laser Cutting Machine 6
1530 CNC Sheet Metal Fiber Laser Cutting Machine 7
jining Gaochuang cnc equipment company integrates D&R ,manufacture,sales,service in
one, specilized in produce: cantilever type portable cnc cutting machine(flame/ air
plasmer) table type cnc cutting machine flame/air plasmer straighting-line cutting
machine Gantry cnc cutting machine welding machine, CO2 welder, inverter welder etc
,
FAQ
1. who are we?

We are based in Shandong, China, start from 2012,sell to Southeast
Asia(30.00%),Africa(10.00%),Mid East(10.00%),South Asia(8.00%),Western
Europe(7.00%),Central America(5.00%),Southern Europe(5.00%),Northern
Europe(5.00%),South America(5.00%),North America(5.00%),Domestic
Market(3.00%),Eastern Asia(3.00%),Eastern Europe(2.00%),Oceania(2.00%). There are
total about 11-50 people in our office.



2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



3.what can you buy from us?

cnc plasma cutting machine,cnc flame cutting machine,cnc air plasma cutting
machine,gantry type cnc cutting machine,cnc table cutting machine



4. why should you buy from us not from other suppliers?

We prefer to explain for price for a while Don't want to apologize for the quality
for whole life we believe that only the perfect quality is our proud because we are
GaoChuang CNC, numerical control cutting machine of professional manufacturers.



5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DDU；

Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,GBP,CNY;

Accep , ted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;

Language
Spoken:English,Chinese,Spanish,Japanese,Portug , uese,German,French,Russian,Korean,Ita
lian
