150W 12V 24V Waterproof LED Power Supply Plastic SELV

Model: APV-150-24
Constant voltage LED Power Supply.
Input Voltage: 200-240VAC 47-63Hz
Output Voltage: 24V
Output Current:6.25A
Output Rated Power: 150W max
Inrush Current: 70 Amps max. at 230VAC/50Hz,full load
No Load Power Consumption: <0.5W
Protections: Short Circuit /Over Current /Over Voltage
/over temperature protection
Short Circuit Protection (SCP) Yes,hiccup mode, auto-recovery
Over Voltage Protection (OVP): Yes,hiccup mode, auto-recovery
Over Current Protection (OCP): Yes,hiccup mode, auto-recovery
Working TEMP.: -30°C-70°C
Working Humidity: 10%-90% RH non-condensing
Storage TEMP.,Humidity and altitude: -40℃ ~+70°C ambient
temperature and a 5% to 95% relative humidity range throughout
an altitude range of -60 meters to +5000 meters AMSL.
Certificates and approvals: CE CB SELV ROHS
MTBF: 100Khours minimum at full load at 25℃ ambient
Dimension: 205 x 70 x 45mm (L x W x H)
Packing: 1.2kg; 15pcs./ctn; ctn weight and dimensions: 18.5kg;
45.5 x 29.5 x 19cm


Minimum Order: 500 pieces

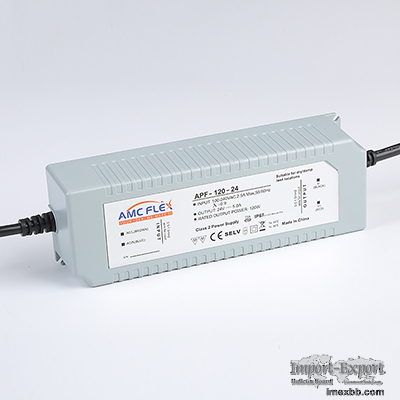

150W 12V 24V Waterproof LED Power Supply Plastic SELV
