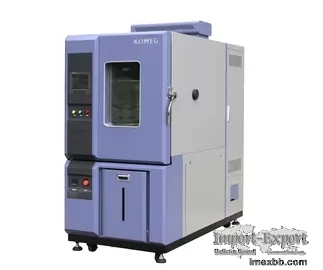

150L Temperature And Humidity Test Chamber With LCD Touch Screen Controller

150L Temperature and Humidity testing Chamber With LCD Touch Screen Controller





Product Overview



Able to accurately simulate a wide range of complicated natural environments,
and is suitable for



reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard
requirements of environmental



testing equipment and test methods for the basic parameters of electric and
electronic products under



the condition of humidity, low temperature, high temperature, and constant
heat.





Prouduct Application


Applicable to environmental adaptability and reliability test in such
industrial units as electronics, electrical



appliance, battery, plastics, food, paper product, vehicle, metal, chemistry,
building material, research



institution, inspection and quarantine bureau, university etc..





Prouduct Specifications



1. Chamber
1.1 Workspace volume IW 600× IH 600 × ID 460 mm
1.2 Exterior size IW 880× IH 1730× ID 1400mm
2. Temperature
2.3 Temperature range -20 ～ 150 ℃
2.4 Temp Deviation ±2.0℃
2.5 Temp Constancy ±0.5℃
2.6 Temp Uniformity ±0.5℃
2.7 Ramping and soaking rate
-20℃ ↓ +100℃ within 45 min(no-load)

+20℃ ↑ -20℃ within 60 min(no-load)

the temperature change rate is 5°C/Min

Ⅴ,Chamber Structure
Overall structure and chamber was composed of three parts as below.

Insulation box, separate refrigeration units, and electrical control cabinet.

1．Insulation box
wall material: high-quality carbon steel with static color spray

inner wall material: SUS304 # matte stainless steel plate

Insulation materials: rigid polyurethane foam insulation layer + glass fiber.

2．Door Heating wire was installed at the door frames to prevent condensation
at low temperatures.
3．Observation window With 2 sets 350 × 500mm (width × height) observation
window, multi-hollow electric insulation coated glass prevent condensation
effectively
4．Cable port Φ50mm*2 located on both sides(each*1) with rubber stopper and
plastic cover
5．Lighting device 11W/AC220V *1 located on observation window
6．Water outlet hole Available for drain the condensate water
7．Sample holder Two layers of stainless steel sample holder.
8．Mobile Casters Mobile Casters *4 with foot cups
9．Electric control box Total power circuit breaker, over-temperature
protection.
10. Water supply system Water pump automatic supply
Ⅵ,Air-conditioning system
1. Control mode Forced ventilation loops design, balance temperature & humidity
control system (BTHC).
2. Air conditioning device
Top-mounted diffuser to ensure uniformity of temperature and humidity

Long axis centrifugal fan, evaporators, heaters, humidifiers was installed on
air conditioning box

3. Heating
Quality nickel-chromium alloy wire electric heaters,

Non-contact control mode (SRR).

4. Cooling Sine wave pattern aluminum finned copper tube air heat
exchanger (air-cooled)
5. Water supply Inner water supply mode
6. Humidifier
Basin heated humidification

Stainless steel sheathed heater

Heater control: non-contact period, such as pulse width modulation, SSR (solid
state relay)

Water level control devices, anti-dry unit heater

7. Compressor Tecumseh brand Compressor
8. Throttling device
Thermal href="http://cn.bing.com/dict/search?q=expans , ion&FORM=BDVSP6" expansion
href="http://cn.bing.com/dict/search?q=va , lve&FORM=BDVSP6" valve & Capillary

9. Refrigerant R404a Environmental friendly high temperature level of
refrigerant
10. Parts and its Brand



Part Brand Remarks
Compressor Tecumseh Hermetic piston compressors with low noise
Oil Splitter ALCO,AC&R,ESK
Evaporator( plate) DANFOSS
Pressure relay DANFOSS, RANCO
Condenser( plate) DANFOSS
Drying screening program DANFOSS, SPORLAN
Capillary KOMEG
Expansion valve DANFOSS,SPORLAN
Solenoid valve SAGINOMIYA, CASTEL
Exhaust gas pressure regulating valve SAGINOMIYA
Condensing pressure regulating valve SAGINOMIYA DANFOSS
Note: Two options listed is for alternate choice and backup purpose
