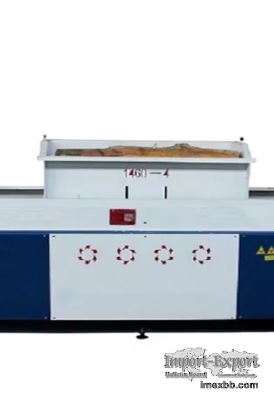

1500kg/H Mouse Bedding Chicken Farm Wood Shaving Machine

Introduction of Wood Shaving Machine

Wood Shavings Machine process scrap existing welding technology using the old
embedded technology is the equipment for more fine, firm, durable and high
quality parts and components equipped, cutting tools imported from Germany,
durable transmission mode using hydraulic transmission, stable performance, low
noise.Using full automation, easy to operate, safe and reliable is an essential
mechanical equipment for particleboard pet bedding.It is a large, medium and
small horse farm, chicken farm, pet mice, flower breeding and other applicable
equipment and advanced technology is the advantage of shader thickness
uniformity can be arbitrarily adjusted without dust pollution.



Wood Shaving Machine is on the basis of the original design of the new wood
shavings, equipment technology advanced workmanship, fine to all sorts of fruit
tree log hard miscellaneous wood branches including the mop pole plate edge,
small wood shavings is recycling scrap value creation asian-american shaving
machine produced shavings form uniform thickness adjustable high yield no dust
size specifications complete.



The wood shaving machine can be used for paper mill to do wood pulp pet pad
material horse farm chicken farm flower breeding pet lab pad material
dehumidification deodorization warm preservation breeding different animals
with large and small thick and thin shavings logistics transportation fragile
products as fillers to prevent damage in addition can also be used as bio-
energy ignition material.



Technical Parameters of Wood Shaving Machine
Name Wood Shaving Machine
Model 1460-4
Cutter shaft(piece) 4
Length of blade 60cm
Number of blades 7*4=28
Power supply 380v-50hz-3p
Total power 25kw
Cutter head speed 3800rpm
Cutter head diameter 158 mm
Shaving depth 0.5-2mm
Max. Log input length 140cm
Max.log input width 60cm
Working distance 1700mm
Capacity 1200-1500kg/h
Machine dimensions 380*155*135cm
Weight 3000kg
