15 inch industrial fanless panel pc

Fanless design industrial panel pc
15" TFT XGA LED Panel (1024 x 768) with resistive touch screen
Embedded Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
1x SODIMM DDR3 1600/1333 SDRAM, Preload 2G RAM (Max 8G)
3~6x COM (1xRS422/485), 1x HDMI, 1xVGA, 4xUSB, 2xLAN, 1xAUDIO and MIC
Offers 1 x Mini PCIe slot, for expansion
Rear panel with power LED and HDD LED Indication
Wireless LAN with antenna (optional)
DC12V input (option Wide range DC 9-36V input)
6mm Robust aluminum with IP65 compliant front bezel design
Panel ( Flush ) mount with clip or Standard VESA 100x100mm support stand,
wall mount and swing arm
Specifications
Main System
CPU Onboard IntelIntel® Celeron® Processor J1900 processor
Chipset Intel Bay trail SOC
System Memory Preload 2GB Ram(Max 8G)
HDD (hard disk ) 2.5" SATA HDD/SSD; Preload 500GB HDD
LAN 2x Realtek ® RL8111x (Gigabit) 10/100/1000Ethernet
Graphic IntelHD chipset
Audio Realtek ® ALC662, 5.1 channel surround Audio
I/O Connector 3~5 x RS-232
1 x RS422/485
1 x HDMI
1x DB-15 Connector
1x Audio (Mic-in / Line-out)
2x 10/100/1000MLAN port ( RJ-45 )
3 x USB2.0, 1 x USB3.0
1x 3Pin DC power input terminal block
Expansion 1x Mini PCIe slot
General
Construction Aluminum front bezel and Aluminum chassis
OS Support Windows 10/8/7, Windows XP, Linux
Mounting Panel mount or Standard VESA 100mm
Power supply DC Input Voltage : 12v, with External AC adapter; Output Rating
28W
Optional Wide range DC 9-36V input
LCD display
Display type 15" XGA TFT LCD LED Backlight
Resolution 1024 x 768 pixels
Contrast Ratio 700:1
Luminance 450 cd/m2
Viewing angle 160°(H) , 140°(V)
ResponseTime 12 ms
LCD MBTF 50, 000hrs

Touchscreen
Type Resistive touch screen
Controller Interface Internal USB interface controller
Resolution Continuous
Light Transmission 81% or more
Operating Force ≤100g
Life Expectancy 35 Million
Environmental
Operate Temperature 0 ~ 50°C (32 ~ 125°F)
Storage Temperature -20 ~ 60°C (-4 ~ 140°F)
Humidity 10% to 90%@ 40°C , on-condensing
Vibration 17 to 500HZ 1G PTP
Operating Shock 1G /peak ( 11m sec)
Ingress Protection Front panel IP65/NEMA4
Packing info
Dimensions(WxHxD) 406x 312 x 68mm
NET weight 7.5 KG

Minimum Order: 2 pieces

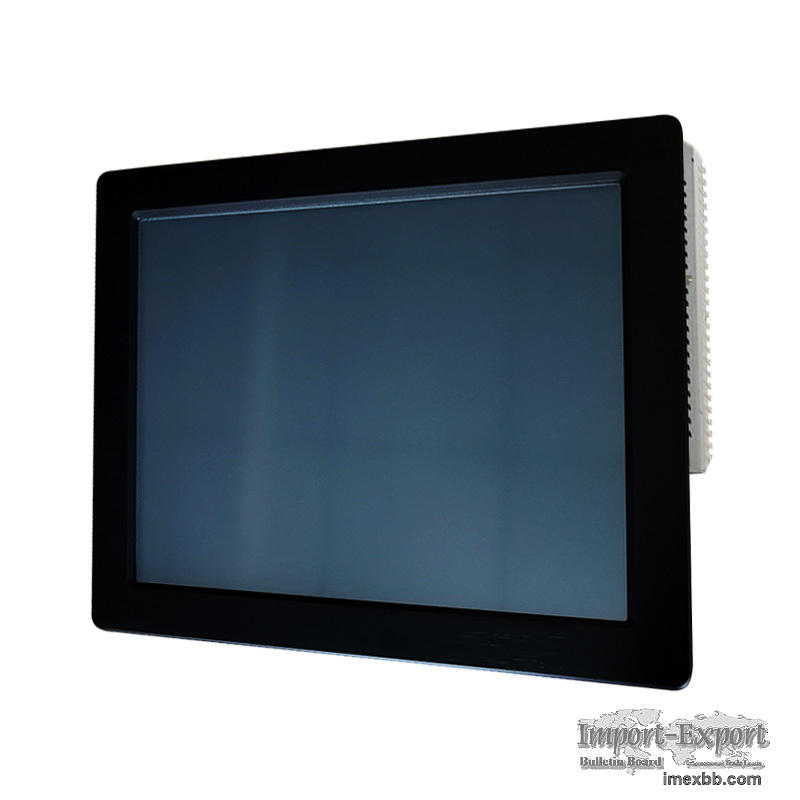

15 inch industrial fanless panel pc
