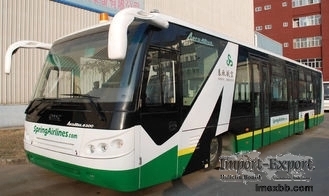

14 Seat 110 Passengers Capacity Airport Apron Bus

14 Seat 6 Door Diesel Engine Airport Transfer Bus Airport Coaches 110
passengers capacity





xinfa has been focusing on researching, manufacturing and providing premium
ground support equipment (gse) for the global customers of airports, airlines
and ground handlers. star products such as airport apron bus, catering truck
are popular on the market.





Specification:



No.

Particulars

Specs

1.

Length × Width ×Height

13890mm×3000mm×3000mm

2.< , br>
Bus body

Low carbon alloy steel body with aluminum apron;

3.

Wheel base

7000mm

4.

Passenger accommodation capacity

Up to 110 passengers including thirteen (14) seats, in compliance with IATA
specifications: four (4) Passengers per sqm

5.

Curb weight

12250kgs

6.

The varied height from passenger cabin floor sill to the ground level

270mm~340mm subject to embarkation and/or disembarkation of passengers

7.

Minimum turning radius

<13500mm

8.

Engine< , br>
4-strok, diesel engine





CUMMINS ISDE180-30, EUROIII, 132KW/2500rpm,

ALLISON 2100





Normal rated power

118kW





Rated speed

2300 rpm





Discharge capacity

4764cc





Compression ratio

18.0





Intake mode

Turbo-charging intercooler





Exhaust emission

EURO III





Fuel consumption

≯215g/kwh

Less than 30Liter per 100 km





Dry weight

520kgs





Fire unit

Electromagnetic mechanism





Generator

28Volt





Starter

6 Kw, 24 Volt

9.

Battery

Battery (2 pcs): 190H52 Lead-acid battery

10.

Transmission (standard)

Allison 2100 automatic transmission, electronic controlled.





Velocity ratio

Gear

ALLISON 2100

ALLISON T270





Gear 1

3.10

3.49





Gear 2

1.81

1.86





Gear 3

1.41

1.41
