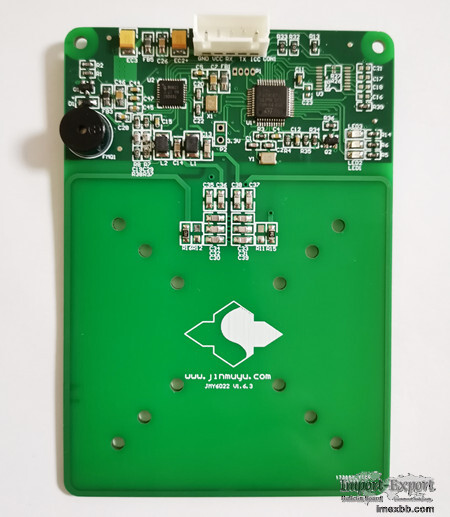

13.56MHz HF RFID Reader Module JMY6022

Description
JMY6022 is a contactless IC card embedded reading and writing module designed
based on the NXP scheme. It fully supports the MIFARE series and ISO14443A and
ISO14443B T=CL non-contact CPU cards. The RF field strength is basically
meeting the requirements of EMV2010 and PBOC 3.0. The card reader has built-in
SAM card slot, supports any SAM card that conforms to the ISO7816 (T=0 & T=1)
standard, and supports the reset and operation of any rate of SAM card. The 32-
bit ARM microcontroller ensures that the reader has good performance and
reliability.
Main Characteristics
• Modules integrated antenna, excellent consistency and stability
• EMV2010 certification ability in RF part
• 2 SAM slots, full fill payment system usage
• 48MHz high speed MCU; 4Mbits external storage
• External low-power RSA/ECC algorithm encryption chip
Qualifications
• PCD: NXP RC663
• PCB Layers：4
• Working frequency: 13.56MHz
• RF standard: ISO14443A、ISO14443B、ISO15693、ISO18000-3 MODE3
• Anti collision ability: Full function anti collision; be able to set multi-
cards or single card
• Auto detecting card: Supported, default OFF, could be set
• SAM slots: 2, T=0 & T=1 9600, 19200, 38400, 55800, 57600, 115200bps
• Power supply: DC 5V (±10%)
• Interface: UART\RS232\USB HID\USB PCSC on order
• Interface level: UART 3.3V (5V tolerance)
• Communication speed:
IIC: Max.200Kbps
UART: 19200bps, 9600bps, 38400bps, 57600bps, 115200bps
USB: 2.0 HID class
• Max. command length:
JCP04: 253bytes
JCP05: 510bytes
• Power consumption: Max.150mA
• Operating distance: 100mm (M1 typical distance, depending on card quality)
• Dimension: 100mm * 70mm * 12mm
• Weight: About 30g
• ISP: Supported
• RoHS: By order
• Operating temperature: -25 to +85°C
• Storage temperature: -40 to +125°C

Minimum Order: 1 pieces
