12V DC CATV Solutions 1550nm FTTH Optical Receiver ORW-1000-AGC

FTTH Optical Receiver

User

Manual (ORW-1000-AGC)

Using high-quality photoelectric conversion adapter, and low noise MMIC
amplifier chip, the circuit design is excellent, excellent nonlinear distortion
characteristics. Easy maintenance, craft beautiful, high performance price
ratio. It has the following characteristics:

♦ LED Alarm when power lower then - 15dBm

♦ Automatic gain control circuit

♦ Output RF power >72dBuV@-12dBm

♦ DC 12V power adapter

Optical Character
Optical Receiving Wavelength (nm) 1550
PON Pass Wavelength (nm) 1310/1490
Receive Power (dBm) -15—2
AGC Range (dBm) ・12~・2
Return Loss (dB) >40
Interface SC/APC(IN) SC/PC(OUT)

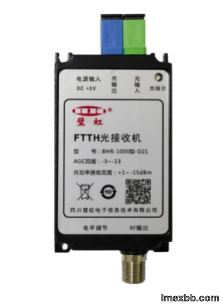

12V DC CATV Solutions 1550nm FTTH Optical Receiver ORW-1000-AGC
Enlarge Click to Enlarge
