12V Brushless Driver Motor 8000 Rpm 3600mA Rated Current 496mN.M Torque

DC driver Motor,Coreless driver DC Motor.Brushless speed driver DC Motor 12V



Product Description:



Assun driver integrated series BLDC motors are equipped with the speed driver
inside of the motor for easier installation and more convenient use.Basic
functions like speed control, rotation control and signal feedback can be
achieved by the integrated driver.



Product introduction:



AM-BD3660AN-1209. 12V.

1.Diameter 36mm. Length 60mm.DC Brushless Driver Motor,8000-12500rpm.12V..

2. No load speed ±12%: 8840rpm. No load current Max150%: 230mA .

3.Torque constant 12.9mN.m/A. Speed constant 741rpm/V, Speed / torque gradient
: 17.8rpm / mN.m

4.Weight :326.8g.Maximum power output 114.8W.

5. Maximum winding temperature: 85℃,Ambient temperatue range : -30 to
65℃.Motor thermal resistance : 6.92K/W.

6.DC Brushless driver motors can install the corresponding with encoder and
planetarty gearbox.

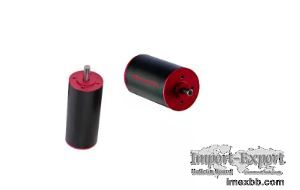

12V Brushless Driver Motor 8000 Rpm 3600mA Rated Current 496mN.M Torque
Enlarge Click to Enlarge
