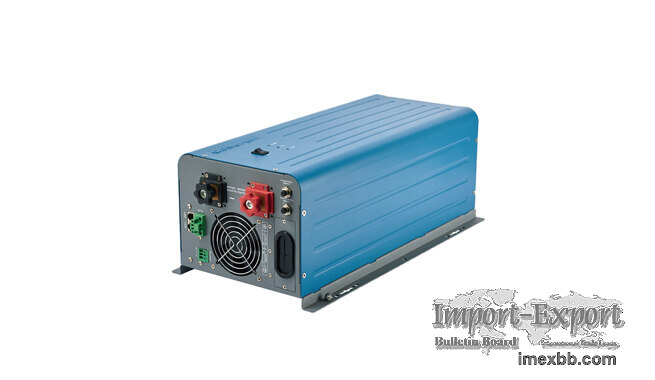

12V 120V ETL APPROVED 3000W INVERTER CHARGER

The Cosuper GMC3000 pro-line pure sine wave inverter charger is a perfect power
solution with combination of battery inverter, battery charger and automatic
transfer switch, which helps save space and simplify installation by reducing
the amount of equipment and cables installed in mobile power systems. This unit
is designed for easy use in RVs, trucks, fleet vehicles and conversion vans.
Ideal for powering tools, saws, motors, pumps, portable lighting, appliances
and computer equipment in heavy-load conditions.

Unique temperature-compensated charging design helps extend battery life by
dynamically adjusting voltage based on ambient temperature. It ensures maximum
charging in colder conditions while reducing the risk of overcharging the
battery in warm conditions.

FEATURES OF 12V 120V ETL APPROVED 3000W INVERTER CHARGER


Approved by ETL standard

CAN-BUS+RS485 communication

Low THD ensure sensitive loads working stably

MAX. 90A charge current for AGM/GEL/Flooded/Lithium batteries

Provide CR80 RV control center, PTM-12 remote controller and CR70 Enginnering
Mode Panel (optional)

Extra charging function for starter battery

Keep working continuously with full power output at -10~50℃

Ultra-low idle consumption could effectively save the energy

Auto GEN start/stop

Electronic protection against Over/under voltage, overload, overheating, short
circuit

2 years warranty

TECHNICAL SPECIFICATIONS OF 12V 120V INVERTER CHARGER
Models GMC3000
Rated Power(-10-50℃) 3000W
DC Input
Rated Voltage 12VDC (10.5~15.5VDC)
Max. Charge Current 90A-house battery; 3A-start battery
Battery Type AGM/Gel/Flooded/Lithium
AC Input
Output Voltage 170-275VAC/93.5-126.5VAC
Input Frequency 45~65Hz
AC Output
Output Voltage 230VAC±5%/120VAC±3%
Oput Frequency 50/60Hz±1%
Wave Form Pure Sine Wave
Transfer Time ≤6ms
Efficiency >90%
Overload 105-120% 10s/ >120% 3s/ >150% 1s
Max. Bypass 3600W
Protection DC over/low volt, AC input low/low volt, AC short circuit, over
temp, overload
Self-consumption 10W
Protection
Dc Low-volt Alarm/Shutdown 11.0V/ 10.5V (Customizable at Engineering mode)
AC Low-volt Switch to DC 187.0V (Customizable at Engineering mode)
Bypass To Invertering 198.0V (Customizable at Engineering mode)
Battery Over-charge Shutdown 15.7V
General
Working Temperature -10~50℃
Storage Temperature -20~50℃
Work/ Storage Humidity 0-90% No condensation
Dimension (W*D*H) 500*259*190mm

As a reliable inverter factory, we can offer kinds of inverter china for sale,
anything you need, please leave us a message.

Minimum Order: 1000 pieces
