12D-FB Cable Inner Conductor BC with Outer Conductor Tinned Copper Braid 50

Product Description

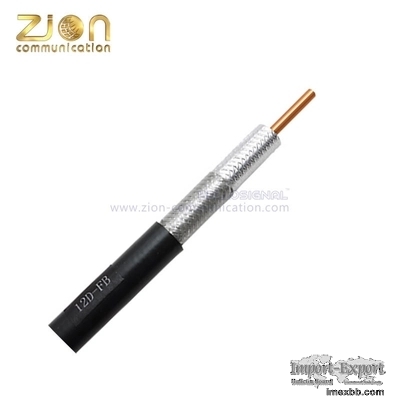

12D-FB BC TC PE
NO.7101414

Construction Parameters:
Inner Conductor 4.40mm Bare Copper
Dielectric 12.40mm Foamed PE
Shield Bonded AL-Foil
Outer Conductor Nom. 13.20mm Tinned Copper Braid
Jacket 15.60mm PE Black
Jacket Thickness
Application

12D-FB Cable Inner Conductor BC with Outer Conductor Tinned Copper Braid 50Ohm
Coaxial Cable 0
Electrical Characteristics:
Capacitance 82 pF/m
Impedance 50 Ω
Velocity of Propagation 81%
Inner Conductor DCR 1.2 Ω/km
Outer Conductor DCR 4.5 Ω/km
Shielding Effectiveness ≥ 80 dB
Return Loss ≥ 20 dB
RoHS Yes

Mechanical and Environmental Properties:
Cable Bend Radius 78mm
Operating Temp Range -40 ℃ to +85℃
Cable Diamensions 15.60mm

Attenuation(20℃):
Frequency (MHZ) Max Attenuation (dB/100m)
150 3.40
280 4.70
350 5.30
400 5.70
800 8.50
900 9.10
1200 10.80
1500 12.30
1900 14.20
2000 14.60
2500 16.60

Order Informations:
Marking HELLOSIGNAL 12D-FB 50 Ohm COAXIAL CABLE ×××M
Package Inquired Length on Roll, Wooden Spool, Pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
