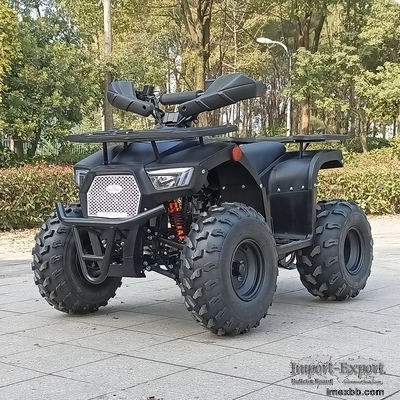

125cc Four Wheel Atv Four Stroke Single Cylinder Max Horsepower 8.0kw 9500r

125CC Four Stroke ,Single Cylinder Max Horsepower:8.0kw(9500r/Min)





Model:

Four wheel atv125CC20

Product Description:

Engine type Four Stroke ,single cylinder,
Engine brand TAIZHONG
Displacement 124CC
Cooling Air cooled
Max horsepower 8.0kw(9500r/min)
Max torque 11N.m(9500r/min)
Bore*stroke 52.4×49.5 mm
Max speed 59km/h (37MPH)
Climbing ability ≥11°
Ignition C.D.I
Starting system Electric start
Battery 12V 4AH
Carburetor brand Pz19
Engine oil 15W/40-SE
Gear oil *
CHASSIS ETC
Clutch automatic
Transmission 1-forward,1-neutral,1-reverse
Driveline Chain drive
Driving wheel *
Suspension,front/rear FR:DOUBLE / RR:SINGLE
Brakes,front/rear FR:DRUM RR:DISC
Brake operation HAND+foot
Tires,front/rear F 19×7.0-8 R 18x9.5-8
Fuel capacity/type 2.5 Gallon






All-terrain vehicle (ATV), also known as a quad, quad bike, three-wheeler,
four-wheeler, or quadricycle as defined by the American National Standards
Institute (ANSI) is a vehicle that travels on low-pressure tires, with a seat
that is straddled by the operator, along with handlebars for steering control.
As the name implies, it is designed to handle a wider variety of terrain than
most other vehicles.





Production Flow

125cc Four Wheel Atv Four Stroke Single Cylinder Max Horsepower 8.0kw 9500r/Min
0



Terms of transaction:

Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent
to you free of charge. This vehicle will be sent to you assembled by sea and
you can ride as soon as getting it. The terms of payment is wire
transfer,western union or moneygram. The delivery time is about 20 days.

Our Service:

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until
you get the products. When you got the goods, test them, and give me a
feedback.If you have any questions about the problem, contact with us, we will
offer the solve way for you.
