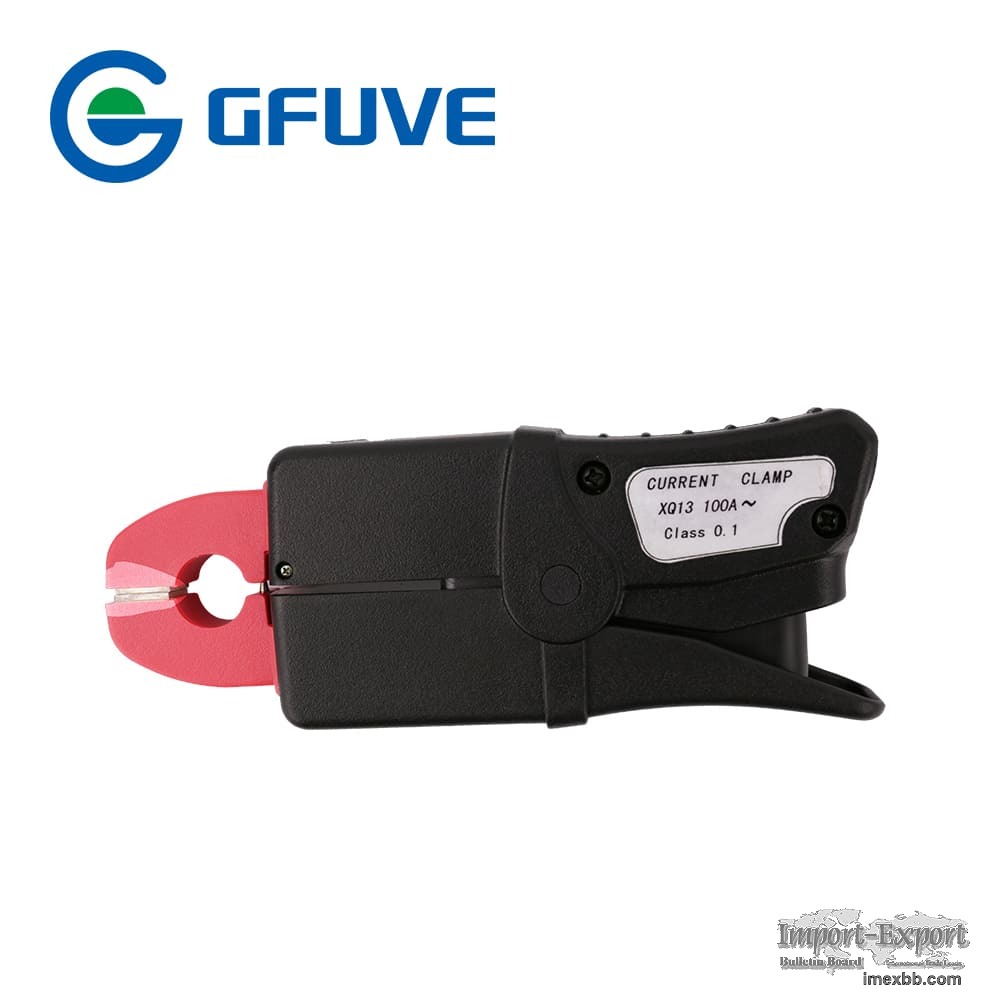

120A AC Current Clamp GFUVE XQ13 13mm Hole Handheld Split Core CT Transform

The model XQ13 100A current probe clamp is suitable for 0A-100A cable online
measurement, it belongs to high performance transducer field. Up to 0.1% accuracy
class, this current probe clamp is suitable for most oscilloscopes. Current signal
can be measured directly. Suitable for accurate measurement of AC current using
the permalloy core material. Frequency range 40Hz-200KHz, with standard 2.5 meter
cable with D01 connector. EN 61010-1, EN 61010-2-032, IEC60044-1 Standard.

Electrical parameters
Ratio: 1000: 1, 2000:1 or 2500:1 (customized)
Accuracy class: 0.1%, 0.2%
Primary current: 0 - 100A AC
Secondary current: 0 - 100mA AC (customized)
Max. Cont. Input current: 120A
Load capacity: ≤20Ω , Standard 4Ω
Over voltage category: CAT III 600V
Output signal (AC current): From 0 to 100mA AC at nominal input current
Output signal (AC voltage): From 0 to 5V AC at nominal input current
Signal ratio: 1mA/A, 1mV/A, 10mV/A, 100mV/A
Frequency range: 40Hz-200KHz
Dielectric strength: 3KV 50Hz/60Hz at 1 minute
Temperature range: -20°C to +55°C
Output: 2.5 meter cable with D01 connector
Max. voltage not insulated conductors: 720 V
Standard: EN 61010-1, EN 61010-2-032, EN 61010-2-031
IEC60044-1, & IEC61869-2, 600V CAT III
Installation: Clamp type
Output mode: Lead output (2.5m)
Connector: BNC, 4mm banana, Audio plug,customized

Mechanical parameters
Dimensions (L x W x H) (mm): 48 x 179 x 27
Weight (g): 325
Holding wire diameter (mm): φ13
Max. jaw opening (mm): 13
Jaw color: Red, yellow, blue, green, black
Material: PC+ABS+Polycarbonate, UL94 V0

Minimum Order: 3 pieces
