1200Mbps Dual Band 4G 5G Routers Gigabit Port With SIM Card Slot
1200Mbps Dual Band 4G 5G Routers Gigabit Port 5G Router With SIM Card Slot
Product Description
Hardware:
WS1208 uses the latest MTK wireless solution ,the MT7621A , the clock frequency
is as high as 880MHZ, provide 5 gigabit Auto MDI/MDIX Ethernet port, 1×USB 3.0
port, 1×PCI-E ,1×SIM card ,
Wireless:
Support IEEE802.11AC/N/G/B/A wireless protocol, max wireless rate could be
1200Mbps , 4×5Dbi high gain antennas , perform better and cover larger.
Software:
Preload the OpenWRT.
Specification
Technical Specification
SOC MT7621A+MT7612E+MT7603E
880MHz dual-core MIPS1004Kc CPU
RAM 128Mx16bit DDRIII SDRAM,16MB SPI Flash
Supports up to 256Mx16bit DDRIII, 32MB SPI Flash
Wireless Frequency Band Wi-Fi 1: 11b/g/n : 2.412~2.484 GHz
Wi-Fi 2: 11a/n/ac : 5.180~5.825 GHz
GPS:1565.42~1585.42 MHz
Wireless Specification Maximum access rate of 1167Mbps (2.4G 300Mbps + 5G 867Mbps)
PCBA size L200mm x W175mm x H17mm
Maximum Power Consumption Max. power consumption 24W
Physical Interface WAN x 1+LAN x 4 : RJ45 interface ,10/100/1000 Fast Ethernet
Power connector: 5.5mm DC socket, DC12V2A power input
USB interface: 1 USB3.0 female socket
LTE interface: 1 MiNi PCI-E female connector, connects to USB2.0 interface LTE
module, 1 drawer SIM card holder
Buttons: 1 button to return to factory settings
Power Requirements DC12V2A
Wireless Settings Working Mode AP/WDS/Repeater
Wireless mode 11b/ 11g /11n /11a /11ac
Channel selection (Display the number of channels in different areas by country
setting)
Channel bandwidth (Auto, 20Mhz, 40Mhz, 80Mhz,)
Receiving Sensitivity 802.11b
-92dBm @ 1Mbps
-83dBm @ 11Mbps
802.11ag
-91dBm @ 6Mbps
-76dBm @ 54Mbps
802.11n HT20
-91dBm @ MCS0
-70dBm @ MCS7
802.11n HT40
-88dBm @ MCS0
-67dBm @ MCS7
802.11ac HT80
-85dBm @ MCS0
-58dBm @ MCS9
Antenna External detachable 5DBi high gain omni-directional antenna
Environmental and Physical Parameters
Operating Temperature -20°C ~ 55°C
Storage temperature -40°C ~ 70°C
Humidity 0%~90% Typical, non-condensing

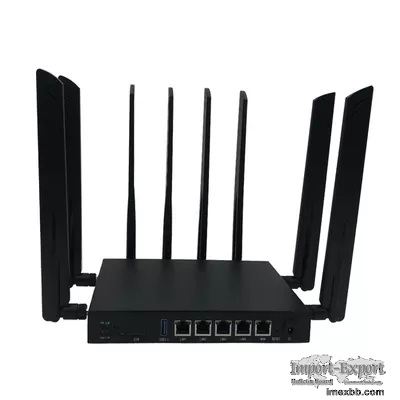

Products Pictures
1200Mbps Dual Band 4G 5G Routers Gigabit Port With SIM Card Slot 01200Mbps Dual
Band 4G 5G Routers Gigabit Port With SIM Card Slot 11200Mbps Dual Band 4G 5G
Routers Gigabit Port With SIM Card Slot 21200Mbps Dual Band 4G 5G Routers Gigabit
Port With SIM Card Slot 31200Mbps Dual Band 4G 5G Routers Gigabit Port With SIM
Card Slot 4
)
Click to Enlarge
