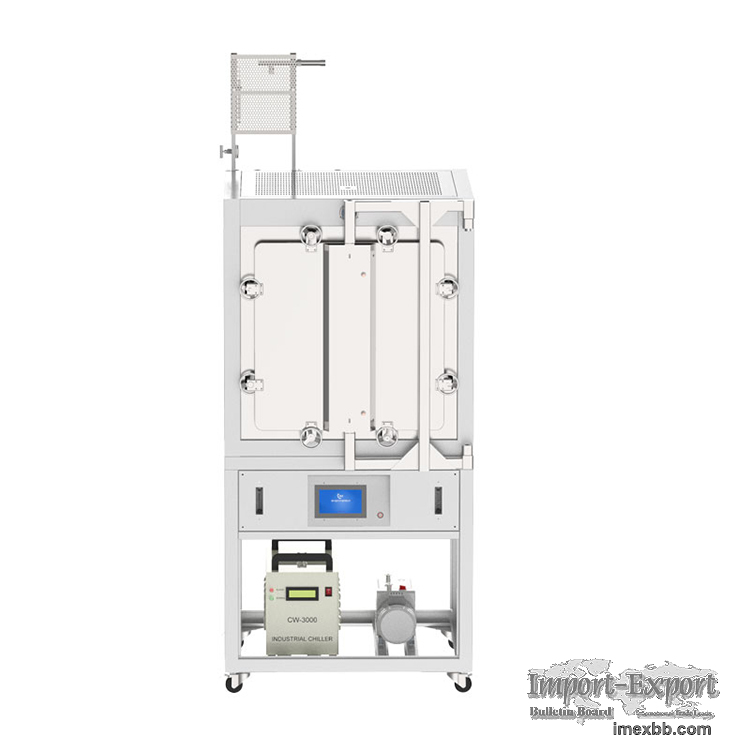

1200°C box-type 64 Liter hydrogen atmosphere furnace

Low temperature box hydrogen furnace

This product is a box-type furnace with a hydrogen atmosphere at 1200°C. The
furnace chamber is a closed design, which can be vacuumed and filled with hydrogen
and other gases. The furnace is a double-layer stainless steel structure, which
guarantees vacuum and safety to the utmost extent, ensures that the positive
pressure can reach 0.06MP, and the vacuum can reach -0.09MPa; the overall water
cooling is cooled, and the shell temperature does not exceed 50℃ during heating to
ensure safe operation. Built-in H2 combustion control system, that is, when the
controller does not detect the flame in the burner, the gas delivery valve will
automatically close. The furnace uses five-sided heating, and the temperature
distribution in the furnace is the most even.
This box furnace contains FA-YD518P-AG temperature controller, which can realize
proportional integral differential control and automatic adjustment functions. The
temperature control accuracy is ±1℃, and it has built-in over-temperature alarm
and thermocouple failure alarm.

Technical parameters:
● Product model CY-M1200H-64IT
● Supply voltage AC220V, 50Hz
● Total power 10KW
● Operating temperature ≤1200℃
● Heating rate Suggest 10℃/min
● Thermocouple type B type thermocouple
● Furnace size 400x400x400mm, 64Liter
● Maximum sample load 35kg
● Constant temperature zone ±1℃ in the center 250mm 3 area; ±5℃ in the
center 300mm 3 area
● Temperature control
1) PID automatic control of heating rate, cooling rate and holding time
2) PID control over temperature protection and short couple protection
3) It has over-temperature protection alarm function, so the equipment can run
unattended
4) The temperature accuracy is ±1℃ (the difference between the displayed
temperature and the actual temperature)
● Heating element 1300℃ imported heating wire
● Water chiller 16L/min circulating water chiller

Minimum Order: 1 sets
