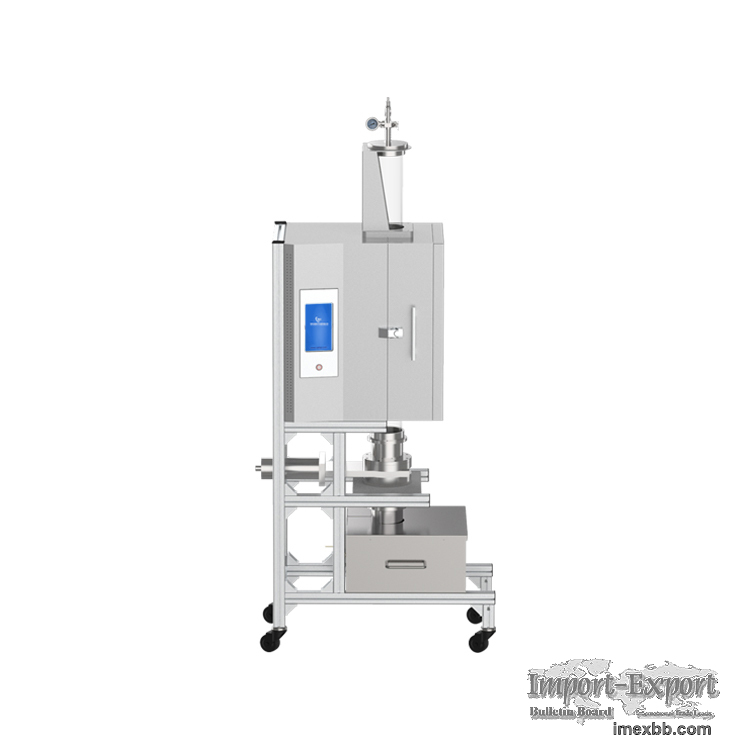

1200℃ vacuum vertical tube furnace for quenching

CY-1200X-4-VTQ is a vertical quenching furnace, the main body is an open type
vertical tubular furnace, the flange on the furnace tube is equipped with hook and
plug, which can be manually released to make the hanging sample fall down; the
lower flange is connected with the sealed liquid container through a φ 100 mm
flange, and the liquid container can contain ice water or cold oil.
High purity alumina is used as furnace material in tubular furnace, which can
improve thermal efficiency and service life of furnace.
Rotary vane mechanical pump is used in vacuum pump, which can provide vacuum
environment for vacuum quenching.
The liquid container is of double-layer structure, with excellent vacuum pressure
resistance and reliable sealing. The box body is fixed by jacking wire and equipped
with a liquid outlet valve, which is convenient for sampling and changing liquid.

Application
The equipment is suitable for studying phase transformation and microstructure
properties of materials.

Technical parameter
1. Model CY-1200X-4-VTQ
2. Power supply Voltage:220V 50Hz power:3KW
3. Heating element Alloy resistance wire
4. Temp zone length 440mm，constant temperature zone 200mm
5. working temperature Max1200℃（＜1h），continuous working 1100℃
6. Heating rate ≤20℃/min，recommended ≤10℃/min
7. Thermocouple K-type
8. Temperature control
PID temperature control system， accuracy±1℃;
Multi stage temperature control program can be set to accurately control heating
and cooling rate and constant temperature time;
It has overheat and broken couple protection
9. Tube
Material: high purity quartz;
Size: O.D φ 100mm i.d94mm x l.1000mm
10. Vacuum flange Upper flange:Φ 100 vacuum stainless steel flange with
manual hook opening device
11. Lower flange:Vacuum stainless steel flange with CF100 flange adapter
12. Quenching vessel Double shell, with outlet valve

Minimum Order: 1 sets
