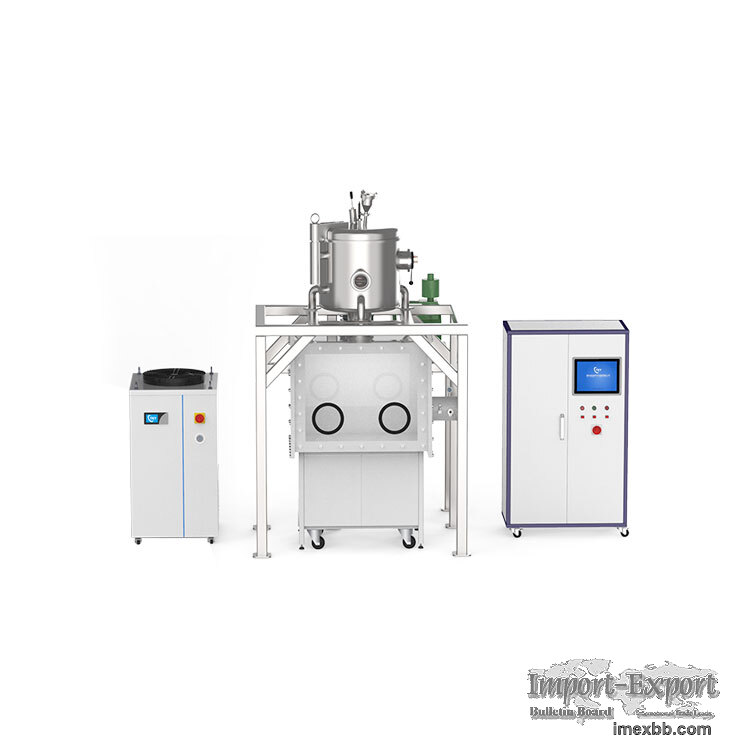

1200℃ 120~150Kw 5 Pa 40kg vacuum melting furnace for indium alloy

40kg vacuum indium alloy melting furnace
CY-IM600-40GB vacuum indium alloy melting furnace is mainly used for high
temperature melting and purification of indium alloy, and realizes the function of
oxygen-free environment packaging

Product Features
1. Induction coil inductor structure, easy to operate, good power coordination,
long life and not easy to deform.
2. Integrated product design, full packaging in an oxygen-free environment
3. Adopt the integrated design of distillation and smelting to realize the dual
function of melting and distillation collection
4. Measure the crucible temperature at the bottom of the crucible in real time, and
measure the surface temperature of the evaporation and collection surface at the
top of the distillation.
5. High vacuum design of smelting furnace stainless steel.

Equipment parameters
(1) Crucible capacity: 40kg (based on the specific gravity of indium alloy),
(2) Maximum working temperature: 1200℃
(3) Power supply capacity: 120-150 Kw
(4) Ultimate vacuum: ≤ 5 Pa (after degassing)
(5) Vacuum pressure rise rate: ≤4.0 Pa/h
(6) Overall dimensions: about 2500×3000×3000 (length×width×height)
(7) IF frequency: 1000～4000 Hz (automatic tracking)
(8) Intermediate frequency voltage: 375 V
(9) Casting method: bottom casting
(10) Temperature measurement range: room temperature-1200℃
(11) Temperature measurement method: thermocouple or infrared, according to the
needs of the actual part
(12) Power supply type: IGBT intermediate frequency power supply
(13) Smelting environment: vacuum or inert gas state.
(14) Crucible size: Φ180mm * 250
(15) Packing method: casting and packing in the glove box, oxygen-free state
throughout the process
(16) Glove box size:
A. Single-station single-sided operation, size 1220*750*900mm
B. Control mode: 7-inch touch screen
C. Purification column: single column
D. Fan 90m³/h
E. Water index <1ppm
F. Oxygen index <1ppm

Minimum Order: 1 sets
