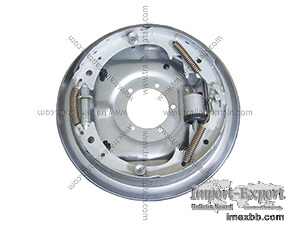

12" x 2" Trailer Hydraulic Uni-Servo Brake Assembly - Dacromet / Galvanized

√

Hydraulic Drum Brake Assembly

√

12 x 2 inch Drum

√

Trailer Hydraulic Brakes

√

5200 lb, 6000 lb, 7000 lb

√

Hydraulic Backing Plate

√

Uni-Servo

√

12" Trailer Brake Assembly

√

Manual Adjustment



The 12 inch trailer hydraulic brakes fit 14 1/2” to 16 ½” wheels. The
mounting flange is 5-bolt pattern. This 12 inch trailer brake has marine -
grade (galvanized or dacromet coated) steel, it offers superior corrosion
resistance. Trailer hydraulic uni-servo brake wholesaler recommend these to
customers who want to replace the boat trailer brakes of 5.2k lbs, 6k lbs
or 7k lbs axle.

Features

l Designed for use with surge-type trailer brake actuators.

l Dacromet / Galvanized coated offers the best value of protection for
salt water applications.

l Uni-Servo brakes have 15 - 20 percent braking in reverse.

l Periodic manual adjustment required.

l This brakes exchange with most quality hydraulic brakes, such as Dexter,
Demco, Hayes, etrailer, LCL etc.

Specifications

Ø Dimension: 12 inch x 2 inch

Ø Axle Capability: 5200 lbs, 6000 lbs, 7000 lbs Axle (14.5", 15", 16" and
16.5"Wheel)

Ø Mounting Flange Bolt Pattern: 5 bolt

Ø Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side /
RH

Product Composition

² 12” x 2" Riveted Uni-Servo Brake Shoe Kit x 1

² Dacromet / Galvanized Back Plate x 1

² Single-Servo Aluminum Wheel Cylinder x 1

² Stainless Steel Springs x 2

Minimum Order: 400 pieces
