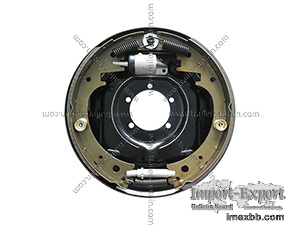

12" x 2" Trailer Hydraulic Uni-Servo Brake Assembly

√

Hydraulic Brake Assembly

√

12 x 2 inch Drum

√

Trailer Brake Kits

√

5200 lbs, 6000 lbs, 7000 lbs

√

12” Hydraulic Brake

√

Uni-Servo

√

Trailer Axle Brakes

√

Trailer Surge Brakes



12” x 2” hydraulic uni-servo brakes are replacement for one 5.2k – 7k lbs
axle with 5 bolt pattern. The brakes are heavy duty application for 7000 lbs
trailer axles. Every 12 inch hydraulic trailer brake assemblies have two pieces
of non- asbestos semi metal brake shoes, bonded and riveted are available. The
matched drums are 6 bolt or 8 bolt 12” brake drums. Technicians always
recommend the customers to use hydraulic brake kit for tandem axles & torsion
axles of boat trailers.

Features

l 12" hydraulic uni-servo brakes use with a surge-type trailer brake actuator
(sold separately).

l Manual adjustment – using fine tooth brake adjustment.

l E-coated backing plates provide corrosion protection.

l Pre-assembled and easy installation.

l This trailer backing plate exchange with most standard hydraulic brakes,
such as Dexter, Titan, Demco, Axletek, etc.

Specifications

Ø Dimension: 12 inch x 2 inch

Ø Axle Capability: 5200 lbs Axle / 6000 lbs Axle/ 7000 lbs Axle (14.5”, 15",
16”, 16.5” Wheel)

Ø Mounting Flange Bolt Pattern: 5 bolt

Ø Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition

² 12” x 2" Bonded Uni-Servo Brake Shoe Kit x 1

² E-Coated Back Plate x 1

² Single-Servo Wheel Cylinder x 1

² Springs x 2

Minimum Order: 300 pieces

Click to Enlarge
