12 M Aluminum Alloy Double Mast Man lift Aerial Work Platform aerial platfo

Product Description


12 M Aluminum Alloy Double Mast Man lift Aerial Work Platform aerial platform lift



Download Specification catalog: R20 double mast 8-12m.pdf










Working Conditions



Convention center
Airports
Hotel
Auto stations and
Highway station
Business building
Gym




Application Occasions



Business decoration, ceiling/fixture works, industrial facilities maintenance,
lamps and lanterns replacement in halls, maintenance of street lamp, aerial
photographs and wall cleaning etc.





Specifications



10 m Aluminum Alloy vertical mast lift manlift double mast lift vertical platform
lift aerial work platform



Manufacturer SIVGE
Country of origin China
Model GTWR8-2008/ GTWR10-2010/ GTWR12-2012
Max. Working height 10/ 12/ 14 m
Max. Platform height 8 /10/ 12m
Platform capacity 300kg
Platform dimension L1200×W600
Stored height 1960mm
Stored length 2550mm
Stored width 1100mm
Machine weight about 720kg
Power supply
DC24V with rechargeable battery

Power input 1.2kw
Dual control Platform and base control
Standard EN280

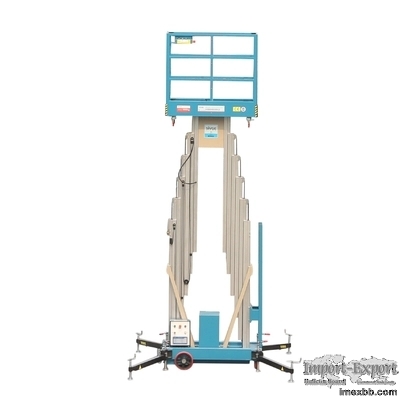

Photos as below;



12 M Aluminum Alloy Double Mast Man lift Aerial Work Platform aerial platform lift
0



12 M Aluminum Alloy Double Mast Man lift Aerial Work Platform aerial platform lift
1



Product features

Overload limit
Double safety protection with leveling stabilizers and outriggers support
Hoist points at four corners
No-marking wheels
Dual controls operation
Compact design with easy quick guardrail assemblage
Emergency stop buttons at both controls
Emergency lowering device in case of power supply failure
24V safe control voltage
The hydraulic pipe that we use is steel pipe (even we use hammer to hit against
the pipe, the pipe will not break with oil leakage) while others usually use hose
which is easy for leaking and damage by hit or during usage.
Mast cover: PU mast cover protects the masts from dusts, and will not hurt your
fingers which the steel cover cannot achieve.
Conform to EN 280:2013


Safe & Stable

safety is the basic concern point of SIVGE.
Professional & Innovative

The only thing SIVGE technical team has done in the past 20 years is research on
the aerial work platforms, especially mast platforms. Each SIVGE innovation is the
effort of our employees. We obtain dozens of patents and utilize these patents in
our products.


SIVGE is focus on portable mobile elevating work platforms, lifting mechanism
synchronization, outriggers rationality, machine stability, operator comfort, and
control of advanced, pleasant appearance, user reliability, complete varieties and
specifications and other aspects to create a unique brand.

Sivge is the drafter for a number of national standards, equipped with High-tech
R&D center. National key scientific and technological support projects industrial
base.





Packing &Shipping

LCL: plywood case with steel pallet at bottom

FCL: 7PCS per 20GP by steel pallet with anti-dust covers

Delivery time is usually 30 days according to order qty. and models.



Using purpose:

Business decoration
ceiling/fixture works
industrial facilities maintenance,
lamps and lanterns replacement in halls
maintenance of street lamp
aerial photographs
wall cleaning etc.
Safe & Reliable

Safety is the main concern of SIVGE.
Professional & Innovative



SIVGE technical team has research and development the aerial work platforms for 20
years, especially mast platforms. We obtain dozens of patents and apply these
patents to our machines.


We focus on portable aerial work platform, lifting mechanism synchronization,
machine stability, operator comfort, and control of advanced, outriggers
rationality, pleasant appearance, user reliability, complete varieties and
specifications and other aspects to create a unique brand.

Sivge has build the national standards in aerial work platform fields, establishde
High-tech R&D center. build the National key scientific and technological support
projects industrial base.





Packing &Shipping

LCL: plywood case with steel pallet

FCL: steel pallet with anti-dust cover

Delivery time is usually 30 days after order comfirmation.
