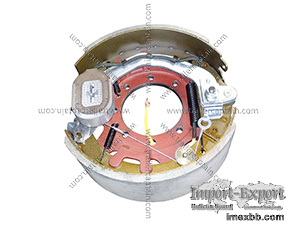

12-1/4" x 4" Trailer Electric Brake Assembly

√

Trailer Backing Plate

√

10,000 lb.

√

Electric Brake Assembly

√

Forward Self Adjusting (FSA)

√

Trailer Drum Brakes

√

Electric Drum Brakes

√

12 1/4” x 4” Drum

√

Trailer Brakes

12-1/4" x 4" trailer electric brake assemblies are self-adjusting brakes,
these 12.25 inch trailer brakes fit 10,000 lbs trailer axles. The mounting
plate is 7 hole pattern.

Features

l 12.25” x 4” Trailer Drum Brakes fit 7 mounting flange for 10k lb.
trailer axles.

l Self-adjusting electric brake assembly don’t need for manual brake
adjustments.

l Completely assembled and easily installation, can exchange with most
trailer brake manufacturers.

l The brake linings are high quality non-asbestos, semi-metal friction
material.

l Fits 16" or larger wheels.

Specifications

Ø Dimension: 12.25 inch x 4 inch

Ø Axle Capability: 10000 lbs Heavy Duty Axle

Ø Mounting Flange Bolt Pattern: 7 bolts

Ø Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side /
RH

Product Composition

² 12 1/4” x 4" Electric Brake Shoe Set x 1

² 7 Bolt Mounting Cast Backing Plate x 1

² Magnet Lever x 1

² Yellow Wire Magnet x 1

² Brake Adjuster x 1

² Long Spring x 1

² Short Spring x 2

Minimum Order: 300 pieces
