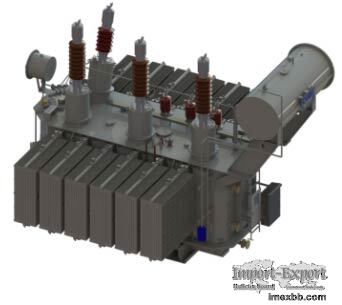

110KV Power Transformer

110KV oil immersed power transformers strictly designed and produced with the
IEC standard and most advanced technology have great reputation and the best
sell performance all over the world.

110kv Power Transformer Description
The oil immersed power transformer consists of core, coil, voltage regulator,
oil tank, oil conservator, insulating oil and other protection and control
components. The transformer is used for voltage stepping up or down and AC
power transmission. The 110KV power transformer is also very important
equipment for the electrical grid, power generator system, industrial and
mining factory, etc. Besides, 110kv power transformer is essential equipment in
the long-distance transmission of electric power, so transformer workplaces
generally are some rural areas and even wastelands. These working conditions
require transformers to be highly reliable. It just meets one of the most
outstanding characteristics of our 110 KV transformer, in the meantime, with
low loss and high efficiency, our oil filled transformer severs electrical
transmission smoothly.

110KV Power Transformer Characteristics
Good Mechanical Strength
Through software simulation, the weakness of structural parts is eliminated for
improving the mechanical strength of structural parts. Manufacture by high
strength steel plate. Using laser cutting equipment for processing, the
deformation and stress is small.

High Earthquake Resistance
The dynamic design method is adopted for the bushing. The horizontal
acceleration is set as 0.5g, the waveform is set as the resonant sinusoidal
third harmonic, and the loading position is the lower end of the casing flange
seat. The main body of our 110KV power transformer adopts the static design
method, and the static horizontal acceleration is 0.5g.

Low Temperature Rise
The reasonable structure of oil flow distribution is adopted to reduce the
winding hot spot temperature rise and average temperature rise. The winding of
large capacity transformer is provided with axial oil passage. 3) Control the
transverse eddy current loss of the winding.

High Resistance to Short Circuit
Short circuit mechanical force is calculated by the dynamic analysis method.
The self-viscous transposition conductor is used in low voltage, which
effectively increases the short-circuit resistance. The machine body adopts
constant pressure drying integrated type, and the integrated assembly adopts
hot suit.

As one of the leading manufacturers of transformers, we provide different types
of transformer, contact us to know more.
