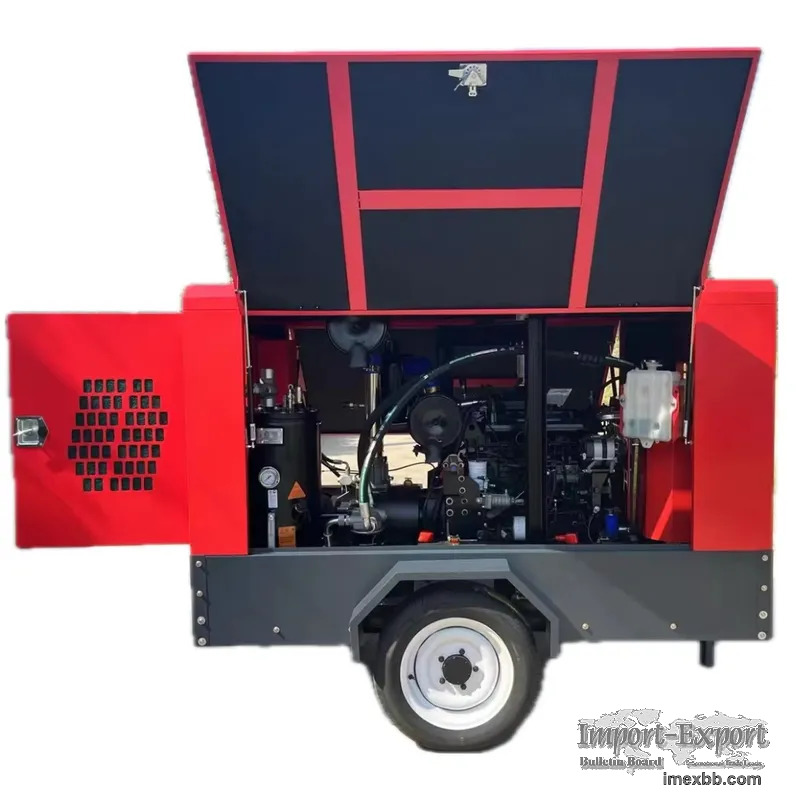

102kw ST-YN-1212-102 Diesel Powered Mobile Air Compressor For Engineering

Power: 13KW~520KW
Pressure: 0.8Mpa-2.5Mpa (8bar-25bar)
Machine Type: 8m³/min~484m³/min
Warranty: One year for the air compressor and two years for the head.
Service: Configuration, Parameters can be customized.
OEM&ODM.
Factory construction in China’s logistics capital-Linyi Shandong, the current
domestic cooperation wholesale radiation 23 provinces 182 cities, foreign
exports to 12 countries.




Details:
Diesel mobile air compressors will be used in mining, water conservancy,
transportation, shipbuilding, urban construction, energy, military and other
industries. These industries often need to work in remote areas or places
without fixed power supply. In this case, mobile air compressors Its
portability and independence make it your ideal compressed air solution. This
is a mobile air compressor powered by a diesel engine. SPARTA diesel mobile air
compressors are efficient, reliable and come in a complete range.
The best selling diesel portable air compressor unit is lightweight,
convenient and has low operating costs. At the same time, the independence of
the diesel engine also allows this air compressor to work in places where there
is no power supply, increasing the flexibility of its use. Customers engaged in
modern industry and engineering know that compressed air has become an
indispensable power source for various machinery, equipment and systems. Diesel
mobile air compressor, as an efficient and portable compressed air equipment,
is widely used in construction, mining, manufacturing, drilling and other
fields.
The working principle of the SPARTA diesel mobile air compressor is to use
the power of the diesel engine to drive the compressor through the transmission
mechanism. The compressor compresses the inhaled air through the internal screw
rotor, increases its pressure, and then outputs it to the place of use through
the exhaust pipe. At the same time, the compressor will also cool the
compressed air through the cooling system to meet the needs of different
working environments.
SPARTA diesel mobile air compressor includes diesel engine, compressor host,
coupling, cooling system, ultra-low temperature preheating system, oil and gas
separation system, control system and other parts. Among them, the diesel
engine provides power for the entire equipment, the compressor is responsible
for compressing the air, the cooling system cools the compressed air, the oil
separator is used to separate oil molecules in the compressed air, and the
control system is responsible for starting, stopping and controlling the entire
equipment. Monitoring and other functions. The SPARTA diesel mobile air
compressor has the following advantages: it is designed to be lightweight and
miniaturized to the maximum extent, so it occupies a relatively small area and
is easy to transport. It can also enter and exit freely in narrow construction
sites, effectively reducing the cost of transportation cost.
Diesel screw air compressor for mining is high reliability and adaptable.
SPARTA diesel mobile air compressor is equipped with well-known multi-brand
diesel engines. There are national engine brands such as Cummins, Weichai,
Xichai, Yuchai, Yunnei, etc. for customers to choose from. The displacement and
power have been reasonably adjusted. It can be adjusted to meet heavy-load use
and harsh outdoor use environments, while reducing fuel consumption and greatly
reducing operating costs.
The unit is equipped with temperature controllers, safety valves, air filter
clogging alarms and other safety protection devices to ensure that the unit
safe and stable operation. Standard primary and secondary fuel filters ensure
the supply of clean fuel, thereby ensuring reliable engine operation. The unit
is equipped with an ultra-low temperature preheating system, and can be
equipped with optional cold-start devices such as fuel heaters and coolant
heaters to solve the problem of difficult engine starting of the unit in low-
temperature and high-altitude areas. We conducted tests in the cold storage and
successfully started the ultra-low temperature preheating at minus fifty five
degrees in one go. Live broadcast viewers should also have friends who are
engaged in the manufacturing industry.
Diesel air compressors can also provide compressed air power for pneumatic
equipment, robots, etc. on the production line. Everyone may have their own
factory buildings and mechanical equipment, and the machines need to be
repaired and maintained. Therefore, another role of the diesel air compressor
is to provide compressed air support for the repair and maintenance of various
equipment.
SPARTA diesel mobile air compressors are divided into two-stage compression and
single-stage compression, with complete power models. We will provide modular
and customized services for screw air compressors based on the changing market
and the diversified needs of live broadcast room friends. Through modular
design, screw air compressors of different specifications and uses can be
quickly assembled and flexibly adjusted to meet everyone's different needs. At
the same time, we can also provide customized air compressor solutions
according to your specific needs.
Our products are in sufficient stock, and we also accept customized models.
Choosing a SPARTA air compressor means choosing a guarantee of quality and
confidence. Whether it is for personal use or business cooperation, we will
wholeheartedly provide you with the best quality products and services. Our
customer service provides twenty four-hour online service. You are welcome to
consult about our products. The SPARTA team is here to serve you
wholeheartedly.

Air compressor production and processing
Adopt standardized production workshop,as well as 6s management system
standard,strictly control production quality and capacity.

Air compressor sales
Factory construction in China's logistics capital-Linyi Shandong,the current
domestic cooperation
wholesale radiation 23 provinces 182 cities,foreign exports to 12 countries.

Air compressor maintenance
Our company has a after-sales and maintenance team of 6 people, to provide
guarantee for our press after-sales maintenance.
Number Power Model Displacement(m3/min) Diesel Engine
1 3/8 CN-2/Quadruple cylinderengine /2300rpm
42KW Single-stage compression 4/8 4 8
5/8 5 8
3/14 3 14
4/12 4 12
42KW Two-stage compression 4.6/14.5 4.6 15.4
5.4/11 5.4 11
6.1/8 6.1 8
2 46KW Single-stage compression 45451 6 8
45422 5 10
4/14.5 4 14.5
46KW Two-stage compression 45423 4 11
45398 4 16
3 60KW Single-stage compression 45481 7 8
45456 6 13
45429 5 17
60KW Two-stage compression 45573 10 8
45575 10 10
45487 7 14
45431 5 19
4 76KW Single-stage compression 45573 10 8
45575 10 10
45518 8 14
45460 6 17
76KW Two-stage compression 45517 13 8
45636 12 10
45518 8 14
45460 6 17
5 92KW Single-stage compression 45517 13 8
45578 10 13
45521 8 17
92KW Two-stage compression 45519 15 8
45637 12 11
10/14.5 10 14.5
6 88KW/76KW Single-stage compression 10/10.5 10 10.5
88KW/76KW Two-stage 5/8 10 16

Minimum Order: 1 pieces
