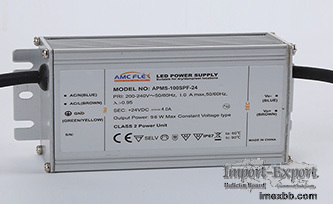

100W 24V IP67 dust-proof LED Drivers

Model:APMS-100SPF-24
Technical Specs:
Output Parameters
Rated Output voltage: 24VDC
Rated Output Current:4.0A
Rated Output Power: 96W Max
Efficiency>91%
Line Regulation:±0.5%
Load Regulation:±1.5%
Voltage tolerance:±3%

2. Input Parameters
Rated Input voltage:200-277VAC
Input voltage range:176-305VAC, 47-63hz
Input Current Max:1.0A
Inrush Current<70A
Power Factor>0.95
THD<15%

3. Protection
Overload
Short Circuit
Over voltage
Over Temperature

4. Environment
Operating Temperature range:-40 to +80℃
Storage Temperature range:-45 to +80 ℃
Humidity: 10～95%
Waterproof Level:IP67
5. Safety Standards
UL8750, IEC/EN61347-1,EN61347-2-13,EN62368, GB19510.1,
GB19510.14, IP67 Approved
Withstand voltage: I/P-O/P:3KV

EMI,EMS
EN55015(CISPR15), G , B17743, EN61000-3-2 , Class C, EN61000-4-2,
8KV air ; Level 2, 4KV contact, EN61000-4-3, EN61000-4-4,
EN61000-4-5，4KV/Line-Line 6KV/Line-Earth, EN61000-4-6

6. Others
MTBF>200Khours
Dimension:140(L)*63 (W)*37(H)mm
Packing: 0.6KG/PC, 350x310x260mm, 20pcs /13Kg / 0.02CBM /CTN

Minimum Order: 500 pieces

100W 24V IP67 dust-proof LED Drivers
