100G WDM OTN Device Optical Transmission Network Solutions

PRODUCT DESCRIPTION
OTN/DWDM 19" 5U 100G 200G Optical Transmission Network Solutions for
Telecom/Datacenter/5G/Long Haul Network

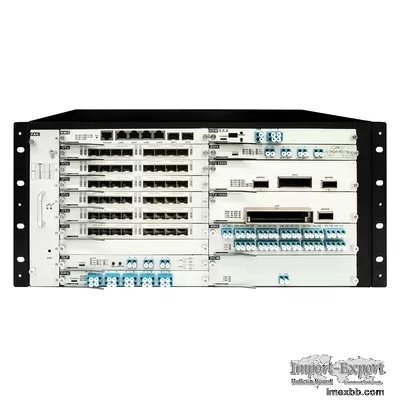

OSP3800 series is a compact, high-capacity, low-cost OTN optical
transmission system introduced by Iseelink. It adopts a CWDM / DWDM common
platform design, supports multi-service transparent transmission, and has
flexible networking and access capabilities. Applicable to the national
backbone network, provincial backbone network, metro backbone network, and
other core networks, to meet the needs of large-capacity nodes above 1.6T,
is the industry‘s most cost-effective transmission application platform.
Build a large-capacity WDM transmission expansion solution for IDC and ISP
operators.



Product Features



● Standard 5U, 19", 20 slots

● Dual power supply AC/DC optional
● Multiple service card hybrid insertion
● Support 10G/100G/200G hybrid transmission


Product Applications

Telecom
Datacenter
5G Network
Long Haul Network

Product Specification



Function Note
Product model OSP3800-1 OSP3800-2 OSP3800-4 OSP3800-5
Equipment

1U: (back-power supply)



2U: (back-power supply)



4U: (back-power supply)



5U: (back-power supply)



Service slot 4 slots 8 slots 16 slots 20 slots
Power consumption 120W (Max) 300 W (Max) 600 W (Max) 750W
(Max)
Max channel number CWDM: 18 wavelengths, DWDM: 96 wavelengths (50GHz)
Single channel max rate 200Gbit/s
Line side rate 1.25Gbit/s, 2.5Gbit/s, 8Gbit/s, 10Gbit/s, 16Gbit/s,
25Gbit/s, 40Gbit/s, 200Gbit/s
Support service
STM-1/4/16/64/256,OC-3/12/48/192/768

OT , U-1/2/3/4

FE/GE/10GE/25GE/40GE/100GE

FC 1G/2G/4G/8G/16G/32G

Clock features Support IEEE 1588V2
Network topology Point-to-point, chain type, star type, ring type
Network level protection Optical channel 1+1 protection, optical
multiplex 1+1 protection, optical line 1+1 protection
Equipment level protection Power supply backup
Network management SNMP, Web, CLI, Telnet
Installation
"19" and 23" cabinets, ETSI 300mm/600mm cabinets

Wireless outdoor base station cabinet, FTTX outdoor cabinet, hanging wall

Working temperature range -10℃～60℃
Working humidity range 5~95% no condensation
Storage temperature range -40℃～85℃
Heat dissipation Fan cooling
Power supply mode AC: 90 ~ 260V or DC: -36 ~ -72 V

OSP3800 series includes the following cards

NMS management card 100G QSFP28 to CFP transponder 2xQSFP28 to CFP2
200G Muxponder
100G Muxponder: QSFP28 ↔ 4xSFP28 40G&100G OEO: 6*QSFP28 SFP28 25G
Quad transponder
SFP+ Multi-Rate Quad transponder Redundant Multi-Rate Dual
transponder EDFA Optical Amplifiers
Bidi EDFA Optical Amplifiers 16ch DWDM MUX/DEMUX 40ch DWDM
MUX/DEMUX(AAWG)
OLP Optical Line Protector DWDM Passive Optical Add/Drop Multiplexers
DCM card

Schematic Diagram


100G WDM OTN Device Optical Transmission Network Solutions 0

Click to Enlarge
