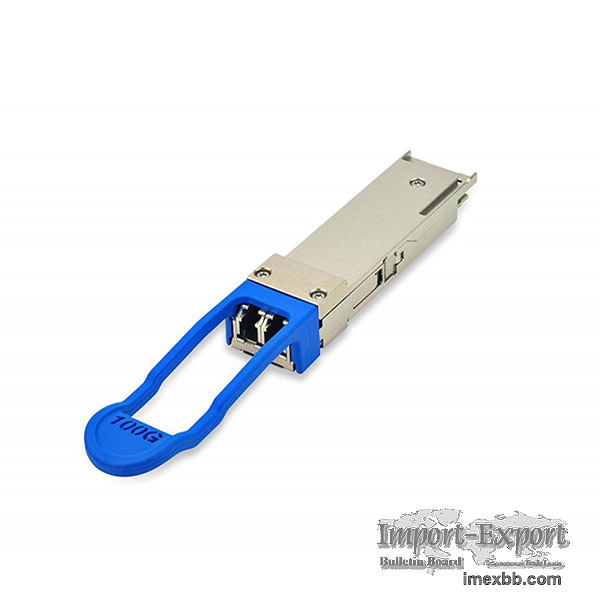

100G QSFP28 Single Mode Transceiver

Designed for 100G Ethernet and OTU3 links over single-mode fibers, the Sintai
100G QSFP28 single-mode optical transceivers use LWDM wavelengths (1295.56nm,
1300.05nm, 1304.58nm, 1309.14nm) and support transmission distance up to 10km.

100G QSFP28 Single Mode Transceiver Feature
Adopt QSFP28 hot-swappable encapsulation with LC interface for single mode.

4 x 25Gb/s laser is adopted.

Support an overall rate of 103.1Gb/s.

Support network applications such as 100G Ethernet and OTU3.

Single-mode optical fiber supports a transmission distance of up to 10km.

Built-in DDM (digital diagnostic monitoring function).

Working temperature: 0°C ~ +70°C.

Comply with RoHS standards.

100G QSFP28 Single Mode Transceiver Overview
The 100G QSFP28 optical communication module launched by Sintai Communication
Co., Ltd. contains the 100GBASE-SR4 and 100GBASE-LR4 series and supports a
maximum rate of 103.1Gb/s.

This series of products use LC or MPO optical port and they are compatible with
IEEE802.3ba standard and SFF-8636 standard; with characteristics of low power
consumption, small volume, and high speed, it is advantageous to the data
center to increase capacity, improve port density and reduce power consumption.

It's mainly used in environments such as an internal network of 100G data
centers, data center interconnection, and metro area networks. The 100G QSFP28
LR4 module is composed of 4 EML lasers and PIN receivers, and it uses the
wavelength division multiplexing technology to multiplex 4-channel different
wavelengths on a single fiber for the transmission, with the longest
transmission distance of 10km.


As a 100g qsfp28 supplier, we have types of optical communication devices for
sale, if you have needs, please contact us.

If you want to buy an optical transponder, please leave us a message.

Minimum Order: 100 pieces
