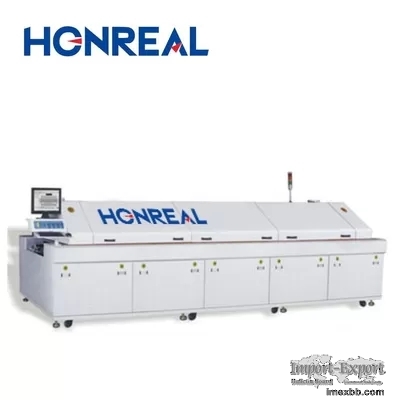

10 Zones SMT Reflow Soldering Machine , PCB SMD Reflow Oven Hot Air Convect

PRODUCT DESCRIPTION
10 Zones Pcb Smd Reflow Oven Hot Air Convection SMT Reflow Soldering Machine

Features:

HR Series High End/Nitrogen Reflow Soldering Machine

1.Humanized operation interface, Windows 7 operating platform, Chinese and
English switching.
2.Intelligent monitoring operation status, fault sound and light alarm,
production data recording.
3.Siemens PLC + PID closed-loop control, temperature control accuracy of
±1℃.
4.Long temperature zone design, each temperature zone reaches 300mm length.
5.The air is returned to the front and rear of the temperature zone to
effectively avoid cross-temperature, and the lateral temperature difference
reaches ±2°C.
6.2800RPM hot air motor, hot air flow rate up to 9OCFM, efficient heat
conduction and thermal compensation capabilities.
7.Superior thermal insulation structure, shell temperature ≤30℃, full use
of energy.
8.3mm thick aluminum alloy galvanized air distribution board ensures uniform
heat distribution in the temperature zone.
9.Strengthen the furnace cavity and guide rail width adjustment mechanism to
effectively avoid deformation of the heated furnace cavity and guide rails.

Machine HR-10C
Heating zones upper 10 zones
bottom 10 zones
Heating tunnel 3580mm
Dimension L5500*1270*1450
Net weight about 1915Kg
General power 54KW
Power consumption Approx.10 KW
Rising time 20 minutes
Controlling type PC + PLC controlling
Heating method Fully forced air convection
Temperature controlling PID close-loop control, SSR drive
Temperature range Ambient---300℃
Temperature accurancy ±1 ℃
Temperature uniform ±1.5 ℃
Cooling two cooling zones (top and bottom)
Conveyor method Mesh belt and chain conveyor
Conveyor height 900±20mm
Max PCB width 350mm
PCB clearance Top / Bottom 30mm
Conveyor direction Left to right
Conveyor speed 0-1800mm/min
Hook lift Electrical screw pole
UP/Downstream communication SMEMA
Power supply 380v,3ph,50hz


Dtails:

10 Zones SMT Reflow Soldering Machine , PCB SMD Reflow Oven Hot Air
Convection 0



Who We Are ?
Shenzhen Honreal Technology Co.,Ltdis a national high-tech
enterprise,Specializing in smt equipment research and development,
production, sales. Services for the world´s top 500 electronic companies.The
registered capital of the company is 5 million.Havingexperienced technical
team andexcellent technical innovation ability, Creating a better product
supply chain and service team and meeting differentcustomer needs is our
long-term goal. We will meet customer needs by understanding customers,
putting them first and providing valuable services.



10 Zones SMT Reflow Soldering Machine , PCB SMD Reflow Oven Hot Air
Convection 1



10 Zones SMT Reflow Soldering Machine , PCB SMD Reflow Oven Hot Air
Convection 2

Certification
