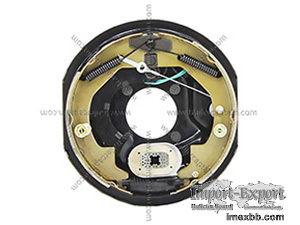

10" x 2 1/4" Trailer Self-Adjusting Electric Brake Assembly

√

Trailer Brake parts

√

Self-Adjustment

√ ,

Trailer Axle parts

√

Nev-R-Adjust

√

10" electric brakes

√

trailer electric brake system

√

3500 lb trailer axle

√

Trailer Axle Brakes



Self adjusting electric brake assembly is a brilliant design for trailer
electric brake system. Al-KO call it Nev-R-Adjust which is mainly for the
trailer axles 2000lbs to 4000lbs later than 2009. It will adjust itself
when the trailer axle brakes are worn thinner. The distance between brake
lining and drum will always keep a very close so that the strength you step
the brake pedal will never need change till the brake shoes are worn out.

Features

l 10 inch electric brakes are easy to install and control.

l Needs only an electric brake controller to work.

l No need actuator or hydraulic lines.

l No need adjusts manually.

l Trailer brake parts are always in the perfect distance to the drums.

l Brake mounting bolts are included.

l 10’’ x 2.25 self-adjust Electric brake assembly can exchange with most 4
lug trailer axles not over 4000 lbs, including Dexter, AL-KO and many
others.

Specifications

Ø Dimension: 10 inch x 2 1/4 inch

Ø Axle Capability: 3500 lbs Axle

Ø Mounting Flange Bolt Pattern: 4 bolts

Ø Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side /
RH

Product Composition

Ø 10” x 2 1/4" Brake Shoe Set x 1

Ø E-coat Backing Plate x 1

Ø Green Wire Magnet x 1

Ø Magnet Lever x 1

Ø Self-adjust cable

Ø Springs x 2

Ø Adjuster x 1

Minimum Order: 300 pieces
